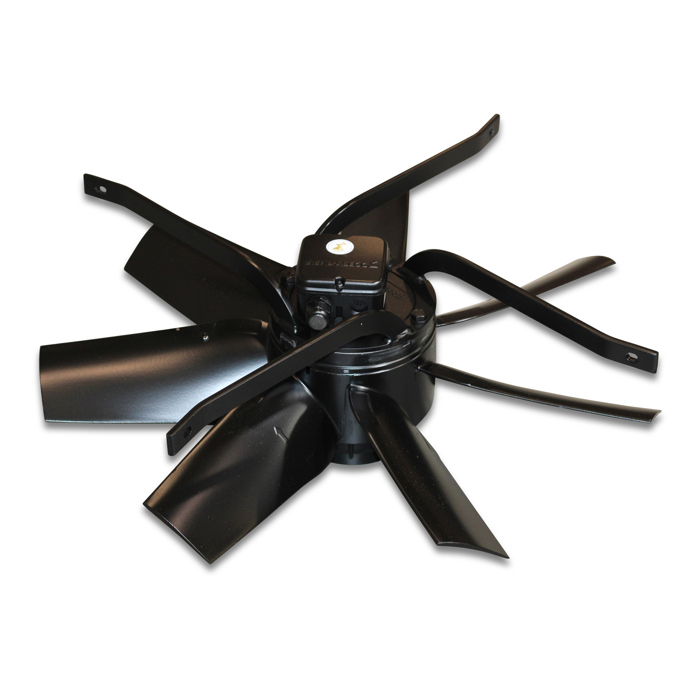

Fan FC071-6DT(R) 17000m³ 400V 780W 1.9A f/tube Dimensions Length 720.00 mm Width 720.00 mm Height 263.00 mm Actual weight 24.000 kg
Basic data Montiert Mounted Thermal protection contact Yes Type Installation in pipe Chimney 710 - BD 730
Rated values Phases 3 Ph Nominal frequency [Hz] 50/60 Hz Control Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac
Classification IP protection rating IP54 Certifications CE Insulation class (DIN EN 60085) F Efficiency rating (ErP) E15
Rated values 50 Hz Elektrische Nennleistung 0.89 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 3,1 A Nominal current star connection 1,8 A Speed 890 U/min Power factor 0.71 Ambient temperature -40 - 70 °C Sound power level Lw 80 dB Sound pressure level Lp 55 dB
Volumetric flow rate 50 Hz Characteristic curve – 0 Pa 19500 m³/h Characteristic curve – 10 Pa 18900 m³/h Characteristic curve – 20 Pa 18300 m³/h Characteristic curve – 30 Pa 17600 m³/h Characteristic curve – 40 Pa 16900 m³/h Characteristic curve – 50 Pa 16000 m³/h Characteristic curve – 60 Pa 15000 m³/h Characteristic curve – 70 Pa 14000 m³/h Characteristic curve – 80 Pa 13000 m³/h Characteristic curve – 90 Pa 11800 m³/h Characteristic curve – 100 Pa 10600 m³/h
Rated values 60 Hz Elektrische Nennleistung 1.2 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Nominal current delta connection 4 A Nominal current star connection 2,3 A Speed 960 U/min Power factor 0.78 Ambient temperature -40 - 70 °C
Illustrations may show accessories that are not included in the scope of delivery.
