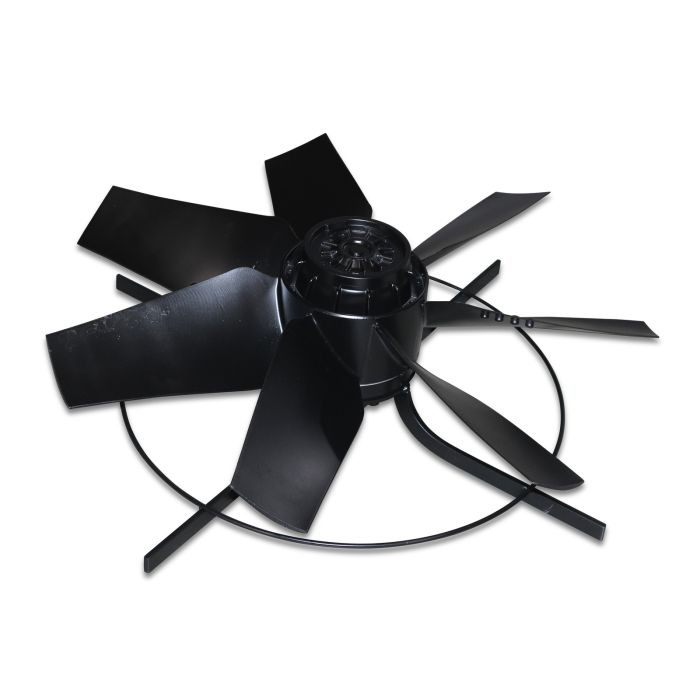

Fan FC080-6DT(R) 25900 m³ 400V 1120W 3.1A f/tub

SKU

60-47-9580

Sales unit 1 pc

Dimensions
Length	795.00	mm
Width	795.00	mm
Height	270.00	mm
Actual weight	27.195	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	820 - BD 820

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	1.35	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	4,6	A
Nominal current star connection	2,7	A
Speed	900	U/min
Power factor	0.73
Ambient temperature	-40 - 40	°C
Sound power level Lw	79	dB
Sound pressure level Lp	54	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	25900	m³/h
Characteristic curve – 10 Pa	25300	m³/h
Characteristic curve – 20 Pa	24600	m³/h
Characteristic curve – 30 Pa	23900	m³/h
Characteristic curve – 40 Pa	23000	m³/h
Characteristic curve – 50 Pa	22000	m³/h
Characteristic curve – 60 Pa	21000	m³/h
Characteristic curve – 70 Pa	19900	m³/h
Characteristic curve – 80 Pa	18700	m³/h
Characteristic curve – 90 Pa	17400	m³/h
Characteristic curve – 100 Pa	16000	m³/h

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
