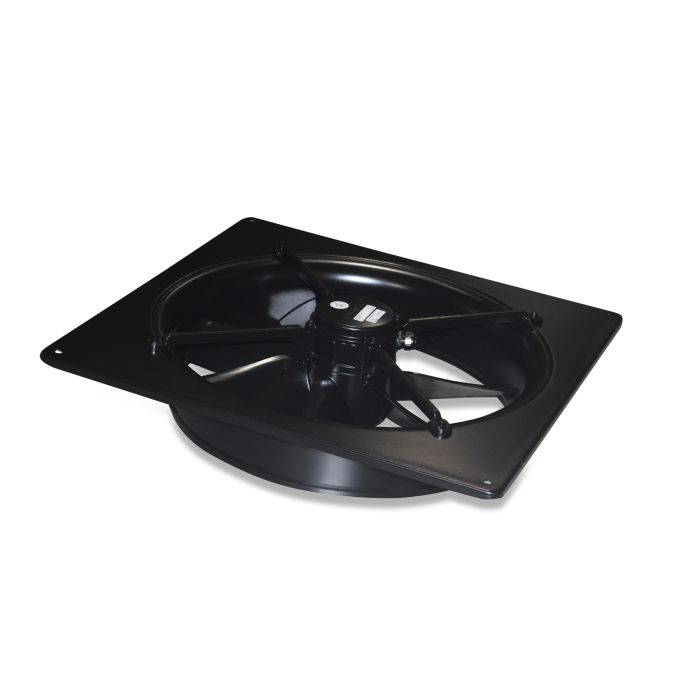

Fan FC056-6DQ 8850m³ 400V 323W 0.8A

SKU

60-47-9656

Sales unit 1 pc

Dimensions
Length	730.00	mm
Width	730.00	mm
Height	208.00	mm
Actual weight	20.571	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Dimensions
Width	675	mm
Height	725	mm
Total depth	198	mm
Diameter	589	mm

Rated values 50 Hz
Elektrische Nennleistung	0.36	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	1,3	A
Nominal current star connection	0,74	A
Speed	890	U/min
Power factor	0.7
Ambient temperature	-40 - 40	°C
Sound power level Lw	73	dB
Sound pressure level Lp	48	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	8781	m³/h
Characteristic curve – 10 Pa	8451	m³/h
Characteristic curve – 20 Pa	8128	m³/h
Characteristic curve – 30 Pa	7774	m³/h
Characteristic curve – 40 Pa	7400	m³/h
Characteristic curve – 50 Pa	7000	m³/h
Characteristic curve – 60 Pa	6284	m³/h
Characteristic curve – 70 Pa	5882	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	36.2	W/(1000m³/h)
Characteristic curve – 10 Pa	38.4	W/(1000m³/h)
Characteristic curve – 20 Pa	41.2	W/(1000m³/h)
Characteristic curve – 30 Pa	43.7	W/(1000m³/h)
Characteristic curve – 40 Pa	47	W/(1000m³/h)
Characteristic curve – 50 Pa	50.2	W/(1000m³/h)
Characteristic curve – 60 Pa	57.3	W/(1000m³/h)
Characteristic curve – 70 Pa	61.2	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
