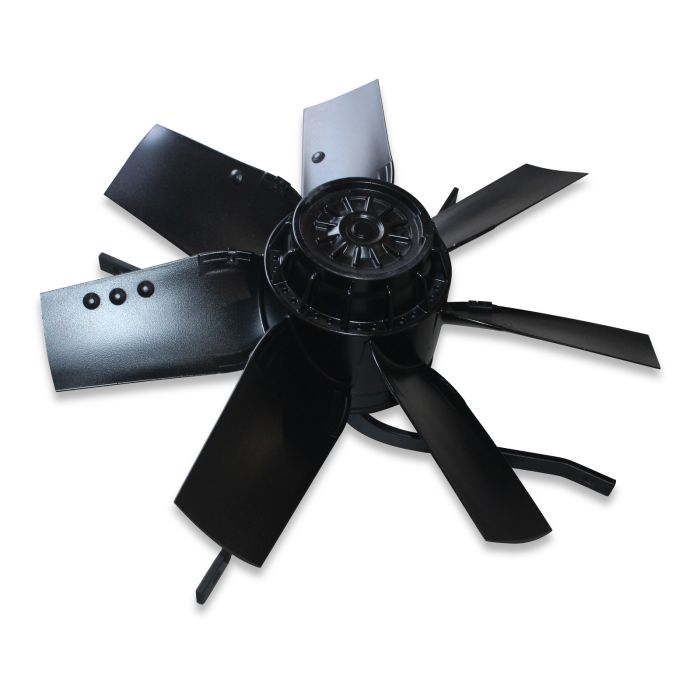

Fan FC063-4DT 18710m³ 400V 1650W 3.8A

SKU

60-47-9763

Sales unit 1 pc

Dimensions
Actual weight	23.900	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	630 - BD 650

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	1.9	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	5,5	A
Nominal current star connection	3,2	A
Speed	1360	U/min
Power factor	0.86
Ambient temperature	-40 - 60	°C
Sound power level Lw	87	dB
Sound pressure level Lp	62	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	19895	m³/h
Characteristic curve – 10 Pa	19651	m³/h
Characteristic curve – 20 Pa	19392	m³/h
Characteristic curve – 30 Pa	19114	m³/h
Characteristic curve – 40 Pa	18812	m³/h
Characteristic curve – 50 Pa	18488	m³/h
Characteristic curve – 60 Pa	18141	m³/h
Characteristic curve – 70 Pa	17757	m³/h
Characteristic curve – 80 Pa	17323	m³/h
Characteristic curve – 90 Pa	16859	m³/h
Characteristic curve – 100 Pa	16350	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	70.5	W/(1000m³/h)
Characteristic curve – 10 Pa	73.7	W/(1000m³/h)
Characteristic curve – 20 Pa	76.9	W/(1000m³/h)
Characteristic curve – 30 Pa	80.2	W/(1000m³/h)
Characteristic curve – 40 Pa	83.2	W/(1000m³/h)
Characteristic curve – 50 Pa	86.3	W/(1000m³/h)
Characteristic curve – 60 Pa	89.5	W/(1000m³/h)
Characteristic curve – 70 Pa	92.9	W/(1000m³/h)
Characteristic curve – 80 Pa	96.5	W/(1000m³/h)
Characteristic curve – 90 Pa	100.5	W/(1000m³/h)
Characteristic curve – 100 Pa	104.8	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
