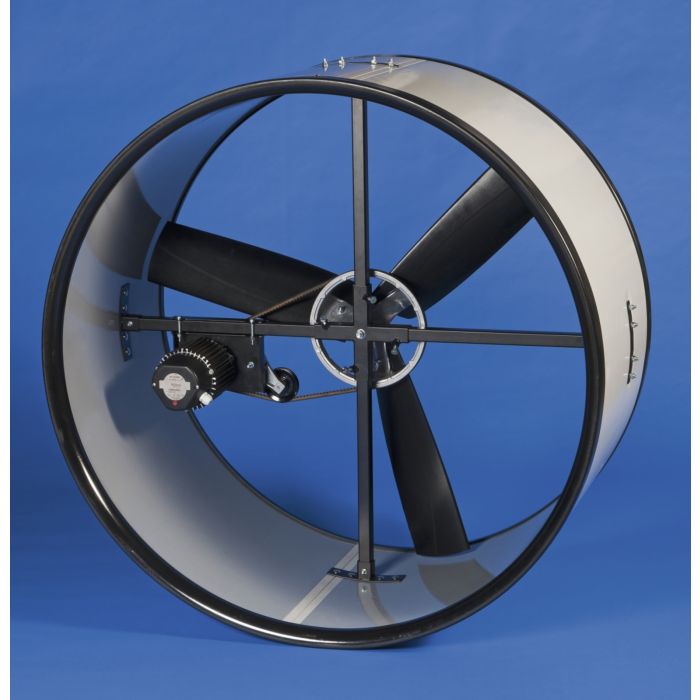

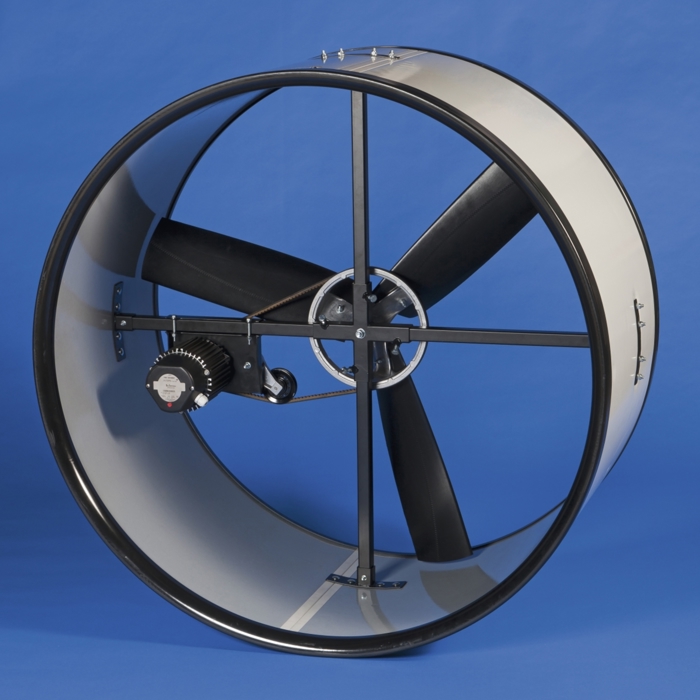

Fan BD-V125-T-3-1.50HP E15 45980m³ 400-3-50 unassembled

SKU

60-48-4830

Sales unit 1 pc

Basic data
Montiert	Unmounted
Type	Installation in pipe
Chimney	1270 - BD 1270

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter

Classification
IP protection rating	IP55
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	1.4	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	4,7	A
Nominal current star connection	2,7	A
Speed	595	U/min
Power factor	0.71
Ambient temperature	-25 - 40	°C
Sound power level Lw	88	dB
Sound pressure level Lp	63	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	45980	m³/h
Characteristic curve – 10 Pa	44300	m³/h
Characteristic curve – 20 Pa	42520	m³/h
Characteristic curve – 30 Pa	40600	m³/h
Characteristic curve – 40 Pa	38510	m³/h
Characteristic curve – 50 Pa	36190	m³/h
Characteristic curve – 60 Pa	33540	m³/h
Characteristic curve – 70 Pa	30370	m³/h
Characteristic curve – 80 Pa	26150	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	29.3	W/(1000m³/h)
Characteristic curve – 10 Pa	31.6	W/(1000m³/h)
Characteristic curve – 20 Pa	34	W/(1000m³/h)
Characteristic curve – 30 Pa	36.7	W/(1000m³/h)
Characteristic curve – 40 Pa	39.6	W/(1000m³/h)
Characteristic curve – 50 Pa	42.9	W/(1000m³/h)
Characteristic curve – 60 Pa	46.8	W/(1000m³/h)
Characteristic curve – 70 Pa	51.8	W/(1000m³/h)
Characteristic curve – 80 Pa	58.8	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
