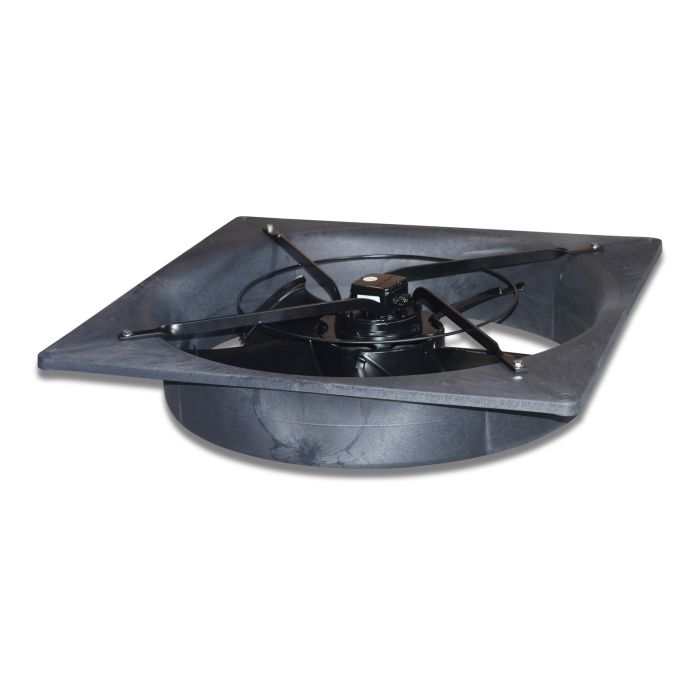

Fan FN091-6DQ.6N.A5 3x400V 50Hz 4.0A

SKU

60-50-0216

Sales unit 1 pc

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation at a wall

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Dimensions
Width	1010	mm
Height	1070	mm
Total depth	299	mm
Diameter	990	mm

Rated values 50 Hz
Elektrische Nennleistung	1.95	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	7	A
Nominal current star connection	4	A
Speed	880	U/min
Power factor	0.69
Ambient temperature	-10 - 40	°C
Sound power level Lw	78	dB
Sound pressure level Lp	53	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	27426	m³/h
Characteristic curve – 10 Pa	26850	m³/h
Characteristic curve – 20 Pa	26275	m³/h
Characteristic curve – 30 Pa	25678	m³/h
Characteristic curve – 40 Pa	25030	m³/h
Characteristic curve – 50 Pa	24382	m³/h
Characteristic curve – 60 Pa	23735	m³/h
Characteristic curve – 70 Pa	23087	m³/h
Characteristic curve – 80 Pa	22485	m³/h
Characteristic curve – 90 Pa	21902	m³/h
Characteristic curve – 100 Pa	21266	m³/h
Characteristic curve – 110 Pa	20577	m³/h
Characteristic curve – 120 Pa	19882	m³/h
Characteristic curve – 140 Pa	18447	m³/h
Characteristic curve – 160 Pa	17054	m³/h
Characteristic curve – 180 Pa	15102	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	49.9	W/(1000m³/h)
Characteristic curve – 10 Pa	51.9	W/(1000m³/h)
Characteristic curve – 20 Pa	55.1	W/(1000m³/h)
Characteristic curve – 30 Pa	57.8	W/(1000m³/h)
Characteristic curve – 40 Pa	60.7	W/(1000m³/h)
Characteristic curve – 50 Pa	63.9	W/(1000m³/h)
Characteristic curve – 60 Pa	68.6	W/(1000m³/h)
Characteristic curve – 70 Pa	71.4	W/(1000m³/h)
Characteristic curve – 80 Pa	75.1	W/(1000m³/h)
Characteristic curve – 90 Pa	78.3	W/(1000m³/h)
Characteristic curve – 100 Pa	82	W/(1000m³/h)
Characteristic curve – 110 Pa	86	W/(1000m³/h)
Characteristic curve – 120 Pa	90.4	W/(1000m³/h)
Characteristic curve – 140 Pa	100.3	W/(1000m³/h)
Characteristic curve – 160 Pa	110.9	W/(1000m³/h)
Characteristic curve – 180 Pa	128.8	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
