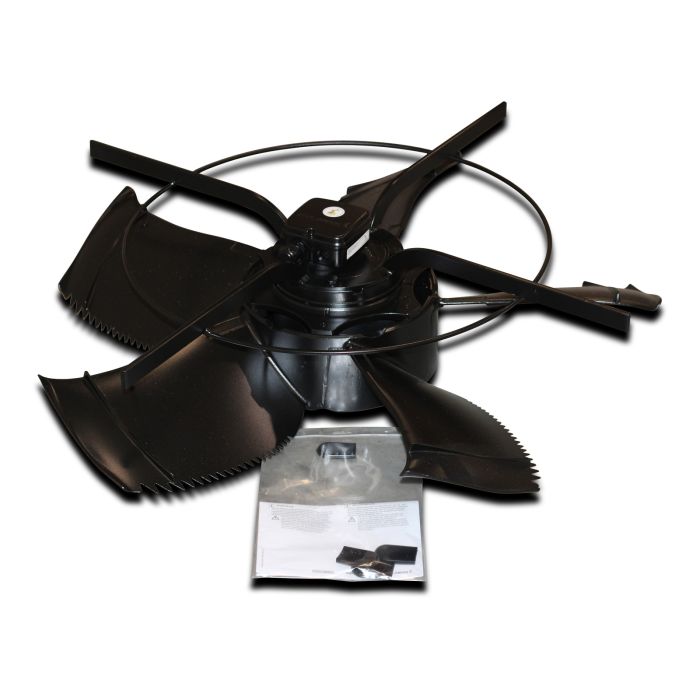

Fan FN091-6DT.6N.A5 3x400V 50Hz 4.0A f/pipe

SKU

60-50-0240

Sales unit 1 pc

Dimensions
Length	905.00	mm
Width	898.00	mm
Height	235.00	mm
Actual weight	35.289	kg

Basic data
Montiert	Mounted
Thermal protection contact	Yes
Type	Installation in pipe
Chimney	920 - BD & CL920

Rated values
Phases	3	Ph
Nominal frequency [Hz]	50	Hz
Control	Frequency converter (with all-pole sinusoidal filter ) / Transformer / Triac

Classification
IP protection rating	IP54
Certifications	CE
Insulation class (DIN EN 60085)	F
Efficiency rating (ErP)	E15

Rated values 50 Hz
Elektrische Nennleistung	1.95	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	7	A
Nominal current star connection	4	A
Speed	880	U/min
Power factor	0.69
Ambient temperature	-40 - 65	°C
Sound power level Lw	78	dB
Sound pressure level Lp	53	dB

Volumetric flow rate 50 Hz
Characteristic curve – 0 Pa	29191	m³/h
Characteristic curve – 10 Pa	28529	m³/h
Characteristic curve – 20 Pa	27868	m³/h
Characteristic curve – 30 Pa	27206	m³/h
Characteristic curve – 40 Pa	26610	m³/h
Characteristic curve – 50 Pa	26014	m³/h
Characteristic curve – 60 Pa	25367	m³/h
Characteristic curve – 70 Pa	24602	m³/h
Characteristic curve – 80 Pa	23853	m³/h
Characteristic curve – 90 Pa	23114	m³/h
Characteristic curve – 100 Pa	22236	m³/h
Characteristic curve – 110 Pa	21268	m³/h
Characteristic curve – 120 Pa	20188	m³/h
Characteristic curve – 140 Pa	17886	m³/h
Characteristic curve – 160 Pa	14117	m³/h
Characteristic curve – 180 Pa	10766	m³/h

Spec. power 50 Hz
Characteristic curve – 0 Pa	40.2	W/(1000m³/h)
Characteristic curve – 10 Pa	43	W/(1000m³/h)
Characteristic curve – 20 Pa	45.9	W/(1000m³/h)
Characteristic curve – 30 Pa	48.9	W/(1000m³/h)
Characteristic curve – 40 Pa	51.7	W/(1000m³/h)
Characteristic curve – 50 Pa	54.6	W/(1000m³/h)
Characteristic curve – 60 Pa	57.8	W/(1000m³/h)
Characteristic curve – 70 Pa	61.4	W/(1000m³/h)
Characteristic curve – 80 Pa	64.9	W/(1000m³/h)
Characteristic curve – 90 Pa	68.4	W/(1000m³/h)
Characteristic curve – 100 Pa	72.7	W/(1000m³/h)
Characteristic curve – 110 Pa	77.7	W/(1000m³/h)
Characteristic curve – 120 Pa	83.5	W/(1000m³/h)
Characteristic curve – 140 Pa	97.2	W/(1000m³/h)
Characteristic curve – 160 Pa	123.6	W/(1000m³/h)
Characteristic curve – 180 Pa	171.2	W/(1000m³/h)
Characteristic curve – 200 Pa	247.8	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
