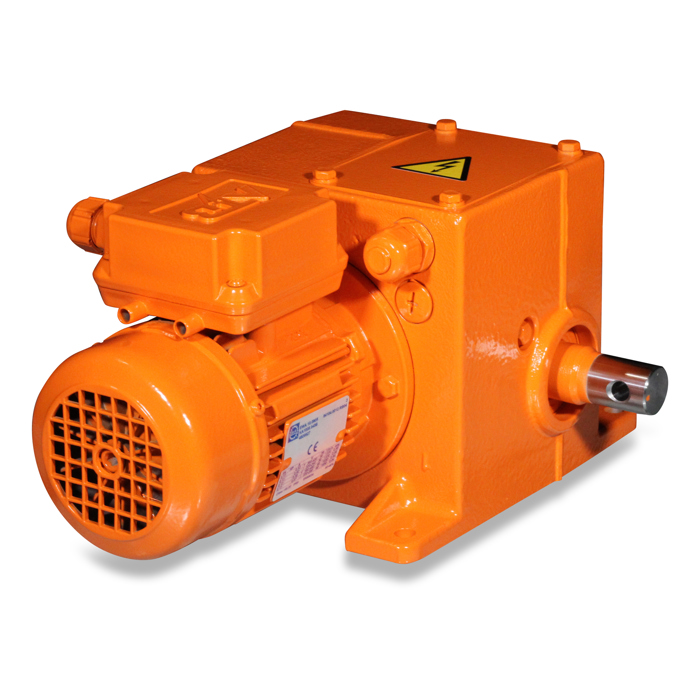

Winch motor EWA10 400V 50/60Hz 0.53A 90Nm 5.6rpm wo/pot

SKU

60-50-3283

Sales unit 1 pc

Dimensions
Length	373.00	mm
Width	266.00	mm
Height	176.00	mm
Actual weight	17.435	kg

Basic data
Motor size	56

Rated values
Frequency	50/60	Hz
Controllable by	nicht regelbar

Classification
IP protection rating	IP55	IP

Rated values 50 Hz
Nominal power	0,13	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	0,92	A
Current consumption star connection	0,53	A
Nominal torque motor	90	Nm
Gear speed	5,6	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
