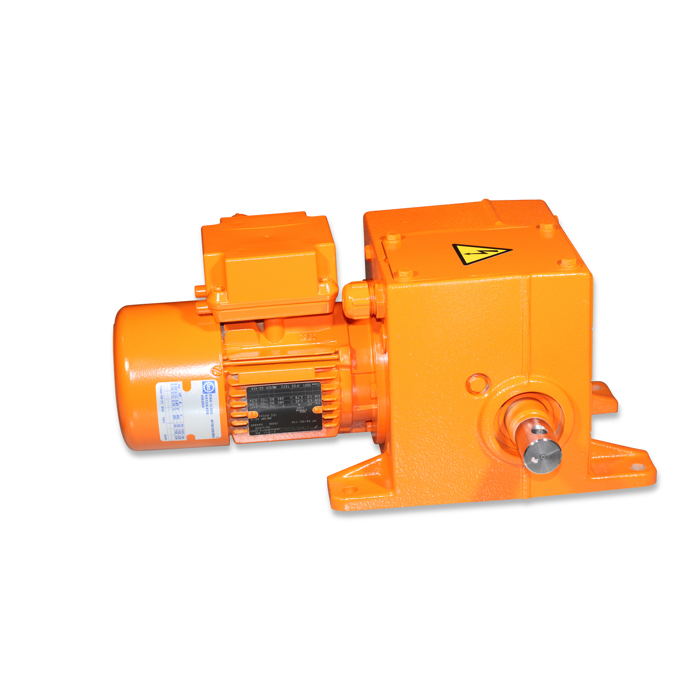

Winch motor EWA10 480V 60Hz 0.53A 90Nm 4.6rpm wo/pot UL+CSA
SKU
60-50-3285
Sales unit 1 pc
| Dimensions | ||
| Length | 465.00 | mm |
| Width | 285.00 | mm |
| Height | 198.00 | mm |
| Actual weight | 18.420 | kg |
| Rated values | ||
| Frequency | 60 | Hz |
| Controllable by | nicht regelbar |
| Classification | ||
| IP protection rating | IP55 | IP |
| Certifications | UL, CSA |
| Rated values 60 Hz | ||
| Nominal power | 0,09 | kW |
| Nominal voltage delta connection | 277 | V |
| Nominal voltage star connection | 480 | V |
| Current consumption delta connection | 0,78 | A |
| Current consumption star connection | 0,45 | A |
| Nominal torque motor | 90 | Nm |
| Gear speed | 4,6 | r/min |
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
