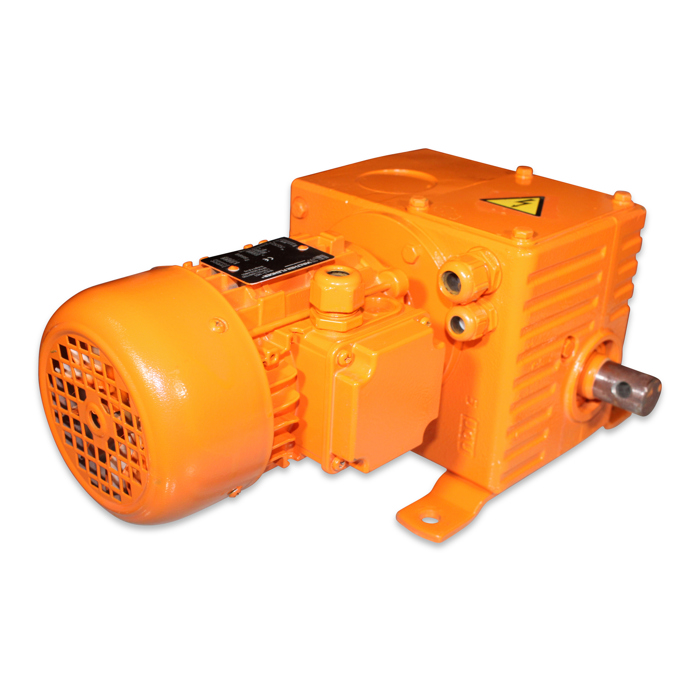

Winch motor EWA12 400V 50/60Hz 1.1A 250Nm 3.2r 6.7r=1400mm

SKU

60-50-3296

Sales unit 1 pc

Dimensions
Length	402.00	mm
Width	280.00	mm
Height	181.00	mm
Actual weight	20.296	kg

Basic data
Motor size	63

Rated values
Frequency	50/60	Hz
Controllable by	nicht regelbar

Classification
IP protection rating	IP55	IP

Dimensions
Output shaft diameter	Welle 26	Ø
Output shaft length	Welle 26	Länge

Rated values 50 Hz
Nominal power	0,25	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	1,9	A
Current consumption star connection	1,1	A
Nominal torque motor	250	Nm
Gear speed	3,2	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
