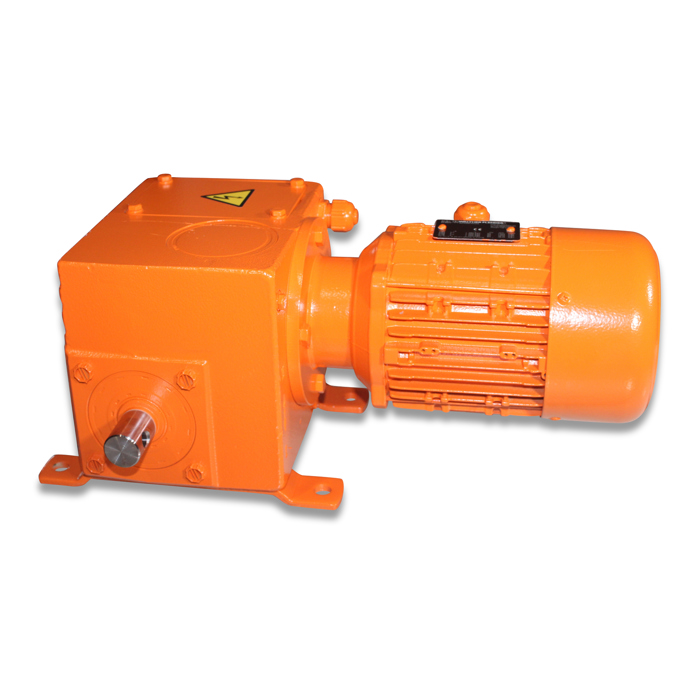

Winch motor EWA14 400V 1.7A 4.4rpm 450Nm wo/pot shaft 06

SKU

60-50-3314

Sales unit 1 pc

Dimensions
Length	446.00	mm
Width	281.00	mm
Height	191.00	mm
Actual weight	26.669	kg

Basic data
Running mode	S3 %	S1-S10
Gear design	Foot version
Weight	25.7	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Controllable by	nicht regelbar
Permiss. ambient temp. during operation	-5 - 60	°C

Classification
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	39	Länge mm

Rated values 50 Hz
Nominal power	1,15	kW
Nominal voltage star connection	400	V
Current consumption star connection	1,7	A
Gear speed	4,4	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
