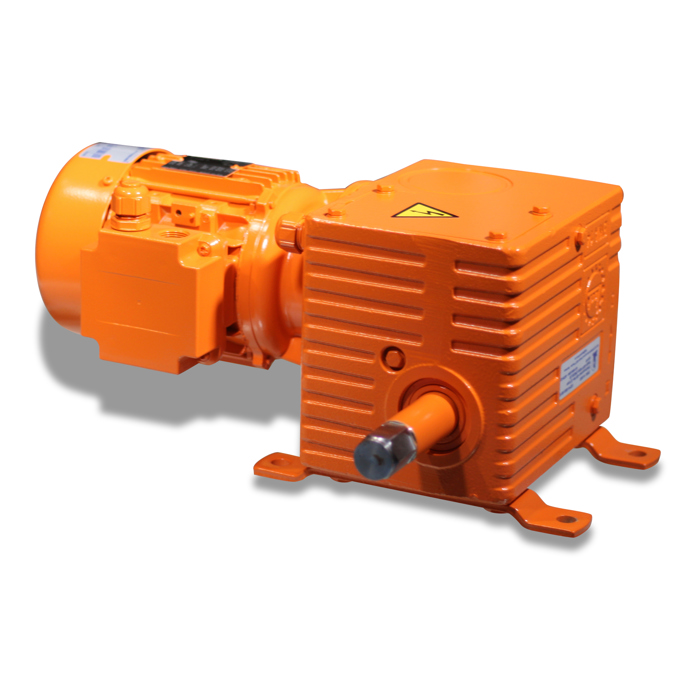

Actuator EWA14 480/60/1.4 450Nm 3.8rpm We66 E20-S UL+CSA

SKU

60-50-3325

Sales unit 1 pc

Dimensions
Length	445.00	mm
Width	364.00	mm
Height	191.00	mm
Actual weight	26602.000	kg

Basic data
Running mode	S3 %	S1-S10
Gear design	Foot version
Weight	26.3	kg

Rated values
Phases	3	Anzahl
Frequency	60	Hz
Controllable by	nicht regelbar
Permiss. ambient temp. during operation	-5 - 60	°C

Classification
IP protection rating	IP55	IP
Insulation class	F
Certifications	UL, CSA

Dimensions
Output shaft length	34	Länge mm

Rated values 60 Hz
Nominal power	0,79	kW
Nominal voltage star connection	480	V
Current consumption star connection	1,4	A
Gear speed	3,8	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
