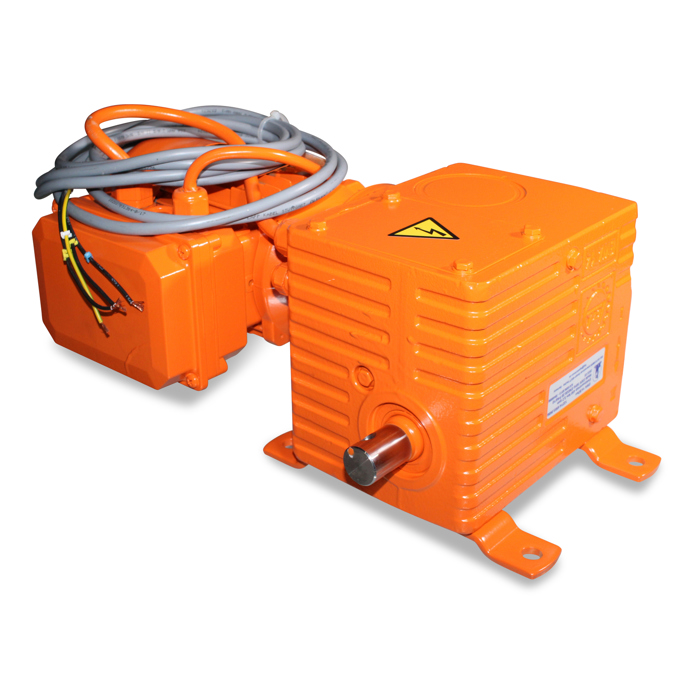

Actuator EWA14 230/50 4.5A 450Nm 3.2rpm travel 13.5r=2800

SKU

60-50-3338

Sales unit 1 pc

Dimensions
Length	494.00	mm
Width	279.00	mm
Height	228.00	mm
Actual weight	28.211	kg

Basic data
Running mode	S3 %	S1-S10
Thermal protection	Yes
Gear design	Foot version

Rated values
Phases	1	Anzahl
Frequency	50	Hz
Controllable by	nicht regelbar
Permiss. ambient temp. during operation	-5 - 60	°C

Classification
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	39	Länge mm

Rated values 50 Hz
Nominal power	0,98	kW
Nominal voltage single-phase	230	V
Current consumption single-phase	4,5	A
Gear speed	3,2	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
