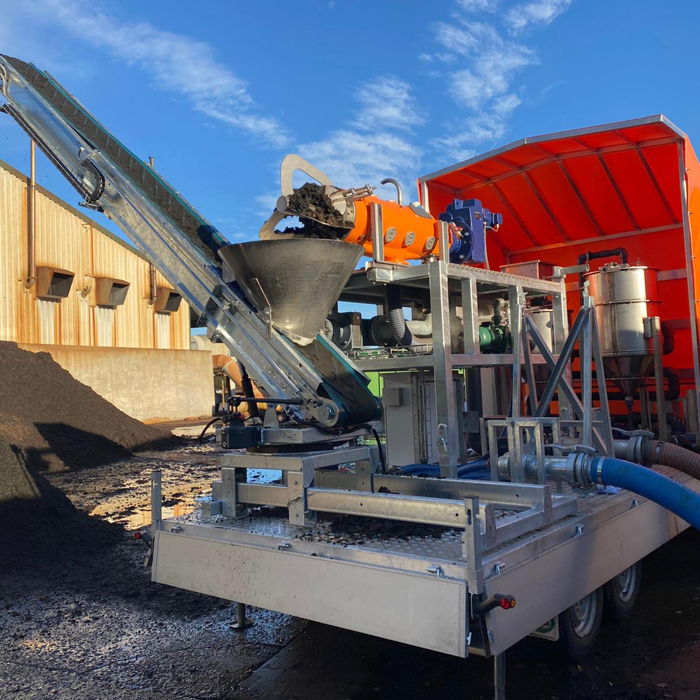

OptiPress mobile for separation of farm manure

With OptiPress mobile, Big Dutchman offers a reliable screw press separator that is supplied as a mobile unit. OptiPress mobile is characterised by its great flexibility, highquality materials and little wear, and thus a long service life. OptiPressmobile separates solids from your slurry quickly and reliably. The separated solids can be used as a spreadable fertiliser with low odour emissions or processed into pellets. The liquid proportion can be spread on the fields as a valuable liquid fertiliser, allowing fertilisation with its desirable nutrient components. Storage is also easier because no homogenisation is necessary. And best of all: the use of a coagulant helps separate a much higher amount of solids and thus more nutrients from your untreated slurry! Let our experts advise you in a detailed consultation.

How OptiPressmobile works The substrate is transferred by suction pump to the separator’s input area. If required, coagulant is stored in a separate tank on the trailer. This flocculation agent is mixed well with the untreated slurry first. A screen basket filters the solid particles and a rotating auger transports them into the separator press. Here, the solids are consolidated applying the resistance of a spring flap mechanism. A centrifugal pump conveys the resulting filtrate into the storage area.

The advantages at a glance

• use of a coagulant for a higher amount of solids and nutrients in the liquid proportion;
• low energy and operating costs;
• compact design with small space requirements;
• ready for connection, including control system and suction and filtrate pump;
• easy to clean and to maintain without removing the press head;
• easy to transport to the required location.

Technical specifications:

• Screen basket length: 780 mm
• Drive power: 5.5/400 kW/V
• Auger rotation: 28 min^-1
• Capacity: 8 – 16 m3/h
• Screen basket diameter: 260 mm
• Housing material: Ductile iron

Video OptiPress mobil
