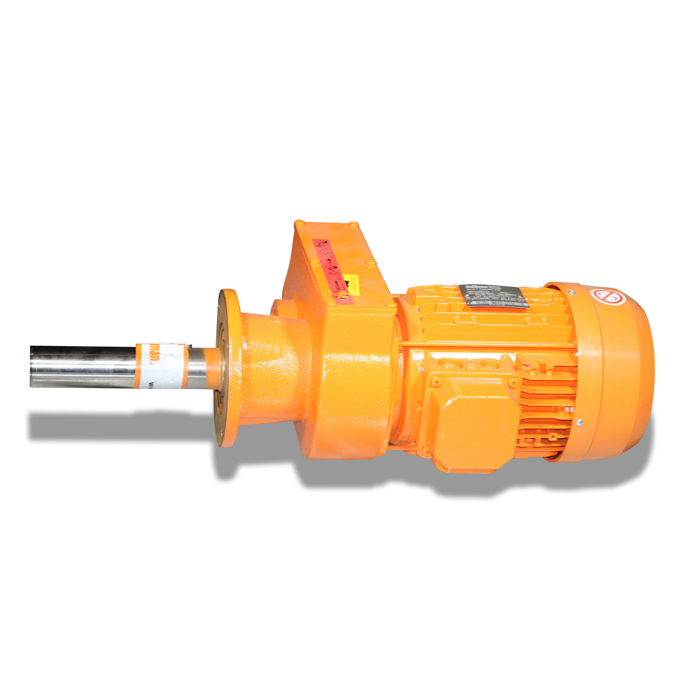

Mot-g 1.50kW 230/400V 3Ph 50Hz 26.5r shaft 40x180 StepByStep

SKU

71-51-7020

Sales unit 1 pc

Dimensions
Length	591.00	mm
Width	276.00	mm
Height	201.00	mm
Actual weight	29.000	kg

Basic data
Design electric motor	B14
Motor size	90L

Rated values
Frequency	50	Hz
Pole pair	50

Classification
IP protection rating	IP55	IP

Rated values 50 Hz
Nominal power	1,5	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	6,4	A
Current consumption star connection	3,7	A
Power factor	3,7
Motor speed	1410	r/min
Nominal torque motor	10,16	Nm
Gear speed	26,5	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
