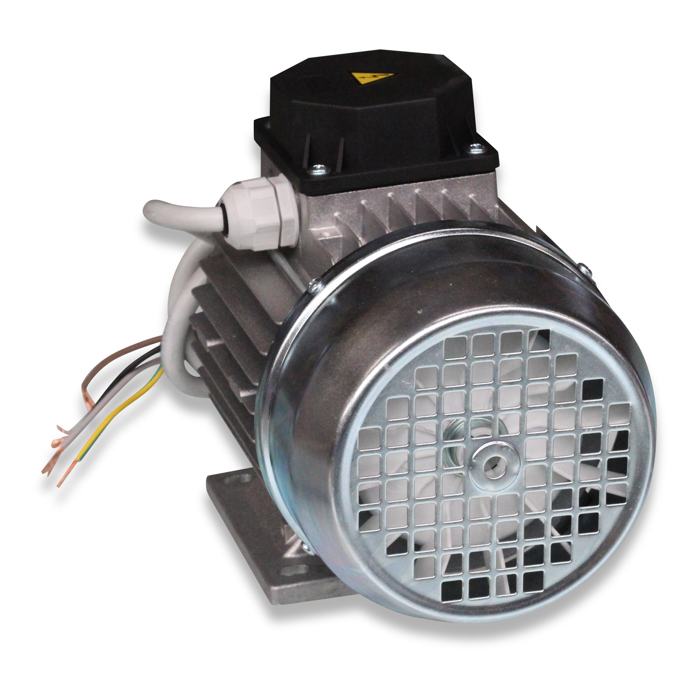

Electric motor 0.50HP 230/400V 50/60Hz 3Ph OneSpeed f/EM36

SKU

82-90-0130

Sales unit 1 pc

Dimensions
Length	248.00	mm
Width	189.00	mm
Height	173.00	mm
Actual weight	6.211	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B3
Weight	6.3	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Pole pair	2
Type of connection	Star/Delta

Classification
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	30	Länge mm

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption star connection	1,1	A
Power factor	0.71
Efficiency	71.5
Motor speed	1400	r/min
Nennmoment Getriebe [Volllast]	2.49	Nm

Rated values 60 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption star connection	1	A
Power factor	0.77
Efficiency	72.1
Motor speed	1660	r/min
Nennmoment Getriebe [Volllast]	2.49	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
