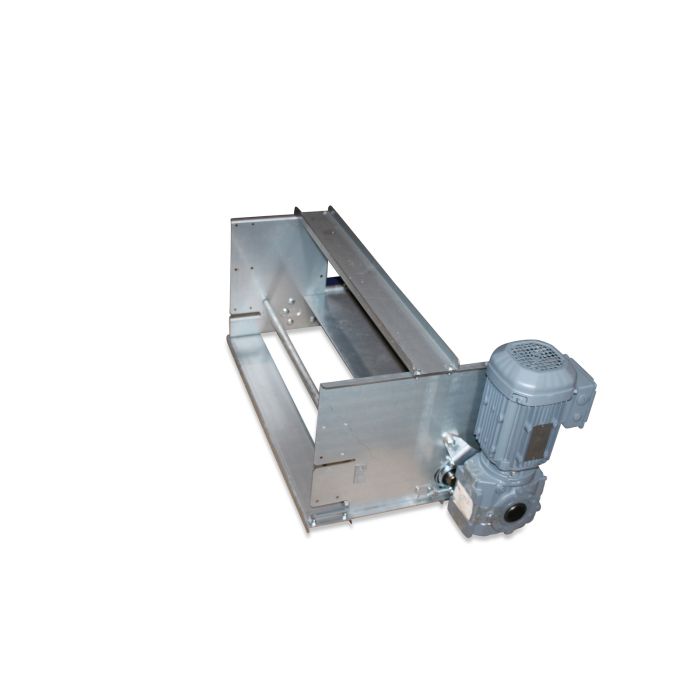

Drive Broiler-cross belt 750mm rh 1.10kW AMX150transit
SKU
83-06-5804
Sales unit 1 pc
| Dimensions | ||
| Length | 1033.00 | mm |
| Width | 543.00 | mm |
| Height | 453.00 | mm |
| Actual weight | 60.000 | kg |
| Basic data | ||
| Number of motors | 1 |
| Rated values | ||
| Phases | 3 | |
| Nominal frequency [Hz] | 50 | |
| Conveying speed | 5.6 | m/min |
| Rated values 50 Hz | ||
| Nominal power | 1,1 | kW |
| Nominal voltage delta connection | 220-242 | V |
| Nominal voltage star connection | 380-420 | V |
| Current consumption delta connection | 4,35 | A |
| Current consumption star connection | 2,5 | A |
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
