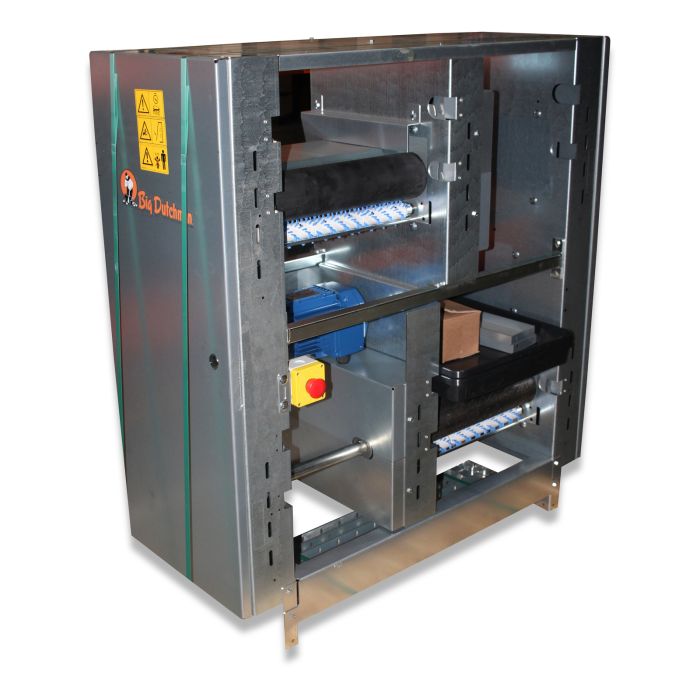

Drive lb EggTrax350 2t NovaXL lh 0.55 400 50/60 3 wo/transf

SKU

83-12-6842

Sales unit 1 pc

Dimensions
Length	1103.00	mm
Width	448.00	mm
Height	1188.00	mm
Actual weight	165.000	kg

Basic data
Number of motors	1
Number of tiers	2

Rated values
Phases	3
Nominal frequency [Hz]	50/60
Conveying speed	2.6	m/min

Rated values 50 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	2,57	A
Current consumption star connection	1,48	A

Rated values 60 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	254-277	V
Nominal voltage star connection	440-480	V
Current consumption delta connection	2,57	A
Current consumption star connection	1,48	A

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
