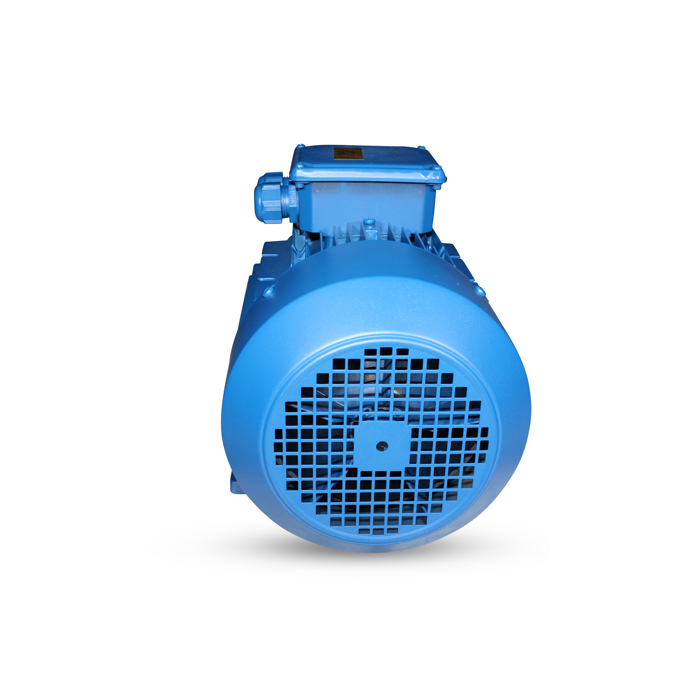

Electric motor 4.00kW 400/690 50/60 3 1445/1734r B3

SKU

83-14-5244

Sales unit 1 pc

Dimensions
Length	405.00	mm
Width	232.00	mm
Height	266.00	mm
Actual weight	34033.000	kg

Basic data
Running mode	S1	S1-S10
Thermal protection	PTC thermistor
Design electric motor	B3
Motor size	112
Norm	IEC60034
Weight	42	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Permiss. ambient temp. during operation	-10 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	60	Länge mm

Rated values 50 Hz
Nominal power	4	kW
Nominal voltage delta connection	380-420	V
Nominal voltage star connection	660-730	V
Current consumption delta connection	8,12	A
Current consumption star connection	4,69	A
Anlaufstrom Ia/In	7.5	Faktor
Power factor	0.82
Efficiency	86.6
Motor speed	1445	r/min

Rated values 60 Hz
Nominal voltage delta connection	380-480	V
Nominal voltage star connection	660-830	V
Motor speed	1735	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
