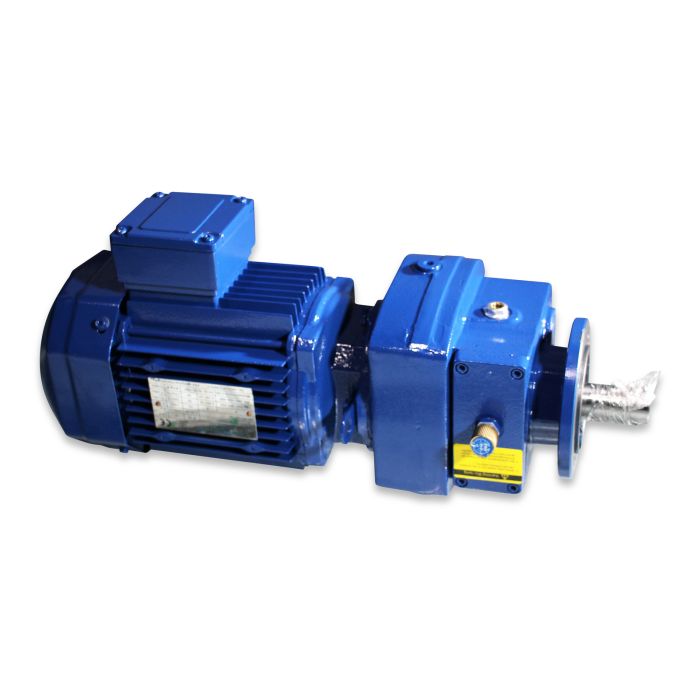

Mot-g 0.55 230/400V 3ph 50Hz 13rpm shaft 25x50 f/EggTrax IE2

SKU

83-55-1088

Sales unit 1 pc

Dimensions
Length	471.00	mm
Width	176.00	mm
Height	208.00	mm
Actual weight	21.389	kg

Basic data
Running mode	S1	S1-S10
Gear design	Flange version
Weight	21.6	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Controllable by	Frequenzumformer

Classification
Wirkungsgradklasse	IE2	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge mm

Rated values 50 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	2,39	A
Current consumption star connection	1,37	A
Power factor	0.75
Efficiency	77.1
Gear speed	13	r/min

Rated values 60 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	240-280	V
Nominal voltage star connection	420-480	V
Current consumption delta connection	2,39	A
Current consumption star connection	1,37	A
Power factor	0.75
Efficiency	77.1
Gear speed	15,6	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
