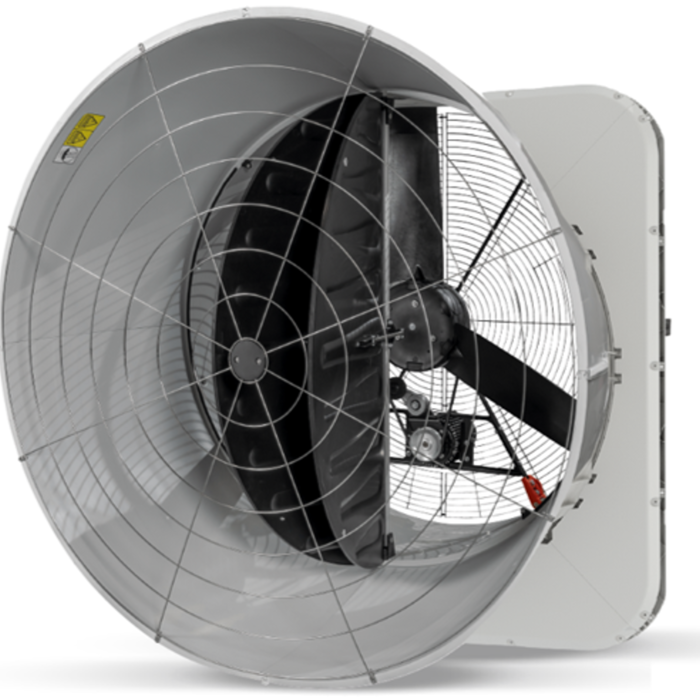

Fan BD-Flex-140C-3-1.5HP-A-230-1-60 unassembled

SKU

83-56-0341

Sales unit 1 pc

Basic data
Montiert	Unmounted
Thermal protection contact	No
Type	Installation at a wall

Rated values
Phases	1	Ph
Nominal frequency [Hz]	60	Hz
Control	Not controllable

Classification
IP protection rating	IP55

Dimensions
Width	1700	mm
Height	1700	mm
Total depth	1256	mm
Diameter	1397	mm
Other dimension	1750	mm

Rated values 60 Hz
Elektrische Nennleistung	1.6	kW
Nominal voltage single-phase	230	V
Nominal current single-phase	6,1	A
Power factor	0.97
Ambient temperature	-25 - 40	°C
Sound power level Lw	76.5	dB
Sound pressure level Lp	66	dB

Volumetric flow rate 60 Hz
Characteristic curve – 0 Pa	52700	m³/h
Characteristic curve – 10 Pa	50486	m³/h
Characteristic curve – 20 Pa	48098	m³/h
Characteristic curve – 30 Pa	45434	m³/h
Characteristic curve – 40 Pa	42605	m³/h
Characteristic curve – 50 Pa	39874	m³/h
Characteristic curve – 60 Pa	37010	m³/h
Characteristic curve – 70 Pa	32985	m³/h

Spec. power 60 Hz
Characteristic curve – 0 Pa	23.9	W/(1000m³/h)
Characteristic curve – 10 Pa	26.4	W/(1000m³/h)
Characteristic curve – 20 Pa	29.2	W/(1000m³/h)
Characteristic curve – 30 Pa	32.4	W/(1000m³/h)
Characteristic curve – 40 Pa	35.8	W/(1000m³/h)
Characteristic curve – 50 Pa	39.3	W/(1000m³/h)
Characteristic curve – 60 Pa	43.3	W/(1000m³/h)
Characteristic curve – 70 Pa	49	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
