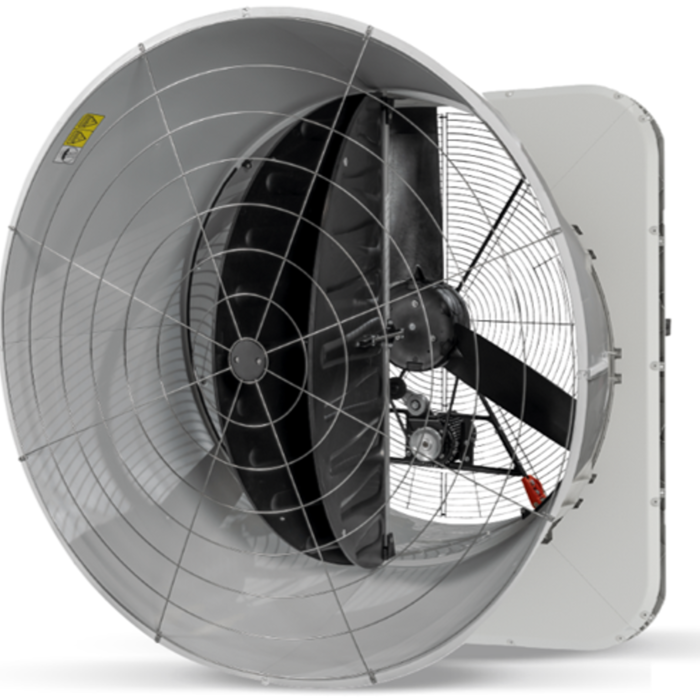

Fan BD-Flex-140C-3-1.5HP-P-230-1-60 unassembled Basic data Montiert Unmounted Thermal protection contact No Type Installation at a wall
Rated values Phases 1 Ph Nominal frequency [Hz] 60 Hz Control Not controllable
Classification IP protection rating IP55
Dimensions Width 1700 mm Height 1700 mm Total depth 1256 mm Diameter 1397 mm Other dimension 1750 mm
Rated values 60 Hz Elektrische Nennleistung 1.54 kW Nominal voltage single-phase 230 V Nominal current single-phase 6,1 A Speed 530 U/min Power factor 0.97 Ambient temperature -25 - 40 °C Sound power level Lw 77 dB Sound pressure level Lp 66 dB
Volumetric flow rate 60 Hz Characteristic curve – 0 Pa 50500 m³/h Characteristic curve – 10 Pa 48141 m³/h Characteristic curve – 20 Pa 45513 m³/h Characteristic curve – 30 Pa 42716 m³/h Characteristic curve – 40 Pa 39779 m³/h Characteristic curve – 50 Pa 36634 m³/h Characteristic curve – 60 Pa 33087 m³/h Characteristic curve – 70 Pa 27643 m³/h
Spec. power 60 Hz Characteristic curve – 0 Pa 25.7 W/(1000m³/h) Characteristic curve – 10 Pa 28.2 W/(1000m³/h) Characteristic curve – 20 Pa 31.2 W/(1000m³/h) Characteristic curve – 30 Pa 34.4 W/(1000m³/h) Characteristic curve – 40 Pa 38 W/(1000m³/h) Characteristic curve – 50 Pa 42.1 W/(1000m³/h) Characteristic curve – 60 Pa 46.9 W/(1000m³/h) Characteristic curve – 70 Pa 54 W/(1000m³/h)
Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
