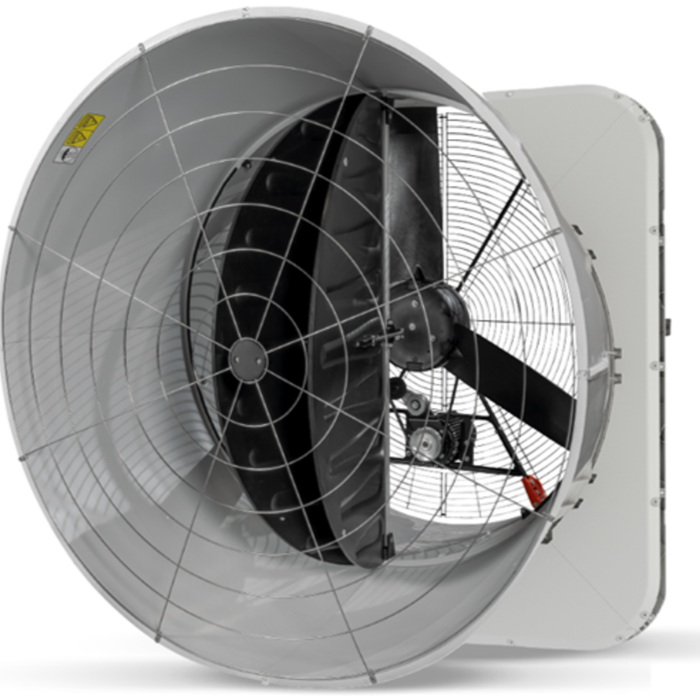

Fan BD-Flex-140C-3-2.0HP-P-230-3-60 unassembled

SKU

83-56-0354

Sales unit 1 pc

Basic data
Montiert	Unmounted
Thermal protection contact	No
Type	Installation at a wall

Rated values
Phases	3	Ph
Nominal frequency [Hz]	60	Hz
Control	Not controllable

Classification
IP protection rating	IP55

Dimensions
Width	1700	mm
Height	1700	mm
Total depth	1256	mm
Diameter	1397	mm
Other dimension	1750	mm

Rated values 60 Hz
Elektrische Nennleistung	1.5	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Nominal current delta connection	5,4	A
Nominal current star connection	3,2	A
Speed	520	U/min
Power factor	0.81
Ambient temperature	-25 - 40	°C
Sound power level Lw	78	dB
Sound pressure level Lp	67	dB

Volumetric flow rate 60 Hz
Characteristic curve – 0 Pa	49800	m³/h
Characteristic curve – 10 Pa	47189	m³/h
Characteristic curve – 20 Pa	44494	m³/h
Characteristic curve – 30 Pa	41696	m³/h
Characteristic curve – 40 Pa	38723	m³/h
Characteristic curve – 50 Pa	35435	m³/h
Characteristic curve – 60 Pa	31342	m³/h
Characteristic curve – 70 Pa	26090	m³/h

Spec. power 60 Hz
Characteristic curve – 0 Pa	24.7	W/(1000m³/h)
Characteristic curve – 10 Pa	27.4	W/(1000m³/h)
Characteristic curve – 20 Pa	30.4	W/(1000m³/h)
Characteristic curve – 30 Pa	33.6	W/(1000m³/h)
Characteristic curve – 40 Pa	37	W/(1000m³/h)
Characteristic curve – 50 Pa	41.2	W/(1000m³/h)
Characteristic curve – 60 Pa	46.6	W/(1000m³/h)
Characteristic curve – 70 Pa	53.8	W/(1000m³/h)

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
