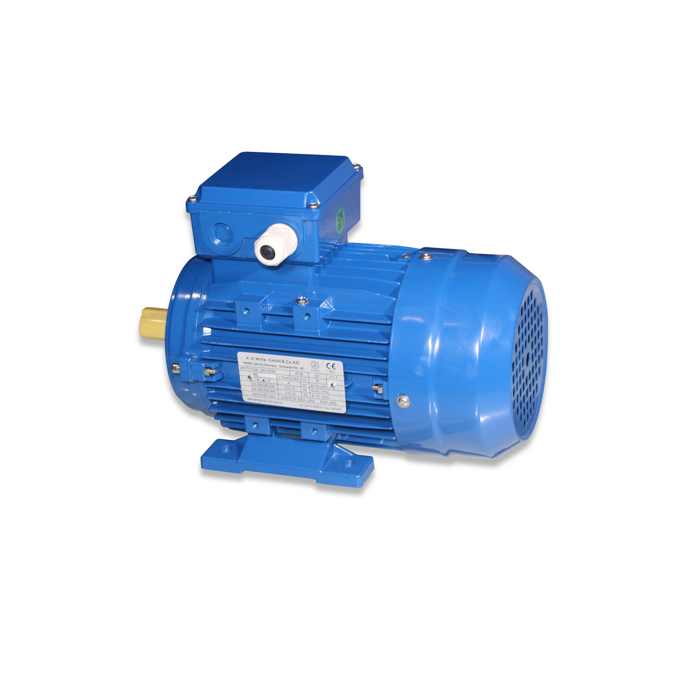

Electric motor 0.75KW 230/400V 50/60Hz 1500/1800r B3

SKU

90-00-1507

Sales unit 1 pc

Dimensions
Length	310.00	mm
Width	162.00	mm
Height	213.00	mm
Actual weight	11.815	kg

Basic data
Running mode	S1	S1-S10
Thermal protection	PTC thermistor
Design electric motor	B3
Motor size	80
Norm	IEC60034
Weight	14.5	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Permiss. ambient temp. during operation	-10 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	40	Länge mm

Rated values 50 Hz
Nominal power	0,75	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	3,08	A
Current consumption star connection	1,78	A
Power factor	0.76
Efficiency	79.6
Motor speed	1400	r/min
Nominal torque motor	5,12	Nm

Rated values 60 Hz
Nominal voltage delta connection	220-277	V
Nominal voltage star connection	380-480	V
Motor speed	1680	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
