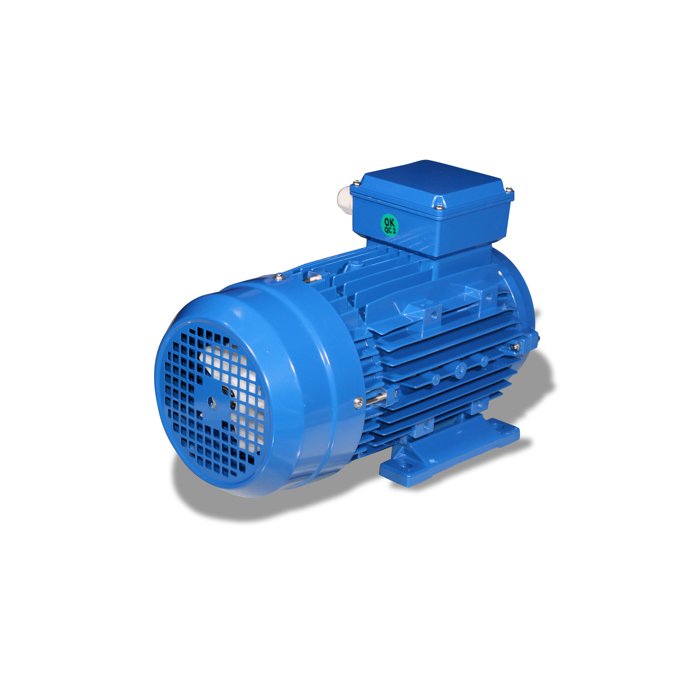

Electric motor 1.50kW 230/400V 50/60Hz 1500/1800r B3

SKU

90-00-1533

Sales unit 1 pc

Dimensions
Length	380.00	mm
Width	182.00	mm
Height	221.00	mm
Actual weight	19.070	kg

Basic data
Running mode	S1	S1-S10
Thermal protection	PTC thermistor
Design electric motor	B3
Motor size	90
Norm	IEC60034
Weight	21	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Permiss. ambient temp. during operation	-10 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge mm

Rated values 50 Hz
Nominal power	1,5	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	5,86	A
Current consumption star connection	3,39	A
Anlaufstrom Ia/In	6.8	Faktor
Power factor	0.77
Efficiency	82.8
Motor speed	1445	r/min
Nominal torque motor	9,91	Nm
Service factor	1	Fs

Rated values 60 Hz
Nominal voltage delta connection	220-277	V
Nominal voltage star connection	380-480	V
Motor speed	1735	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
