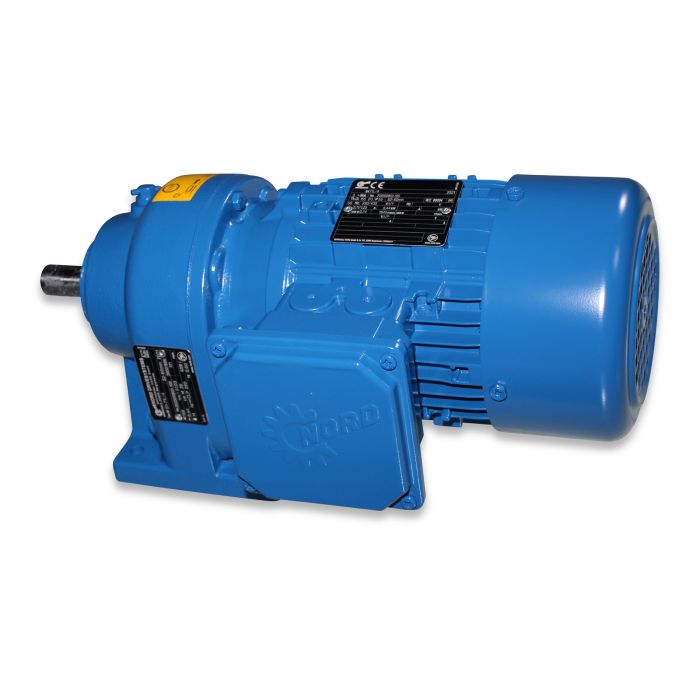

Mot-g 0.37 230/400 50 27r SK01 71L/4 B3 1011

SKU

90-00-3749

Sales unit 1 pc

Dimensions
Length	369.00	mm
Width	198.00	mm
Height	176.00	mm
Actual weight	13.465	kg

Basic data
Running mode	S2 + Xmin	S1-S10
Betriebsart S2 Minuten	60	min
Motor size	71
Gear type	Spur gear
Gear design	Foot version
Gear position	M1	M1-M6
Menge Getriebeöl	0.22	kg
Norm	IEC60034
Weight	14	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-20 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	40	Länge

Rated values 50 Hz
Nominal power	0,44	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	2,11	A
Current consumption star connection	1,22	A
Anlaufstrom Ia/In	3.2	Faktor
Power factor	0.74
Motor speed	1345	r/min
Nominal torque motor	3,12	Nm
Gear speed	26	r/min
Nennmoment Getriebe [Volllast]	159	Nm
Service factor	0.6	Fs

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
