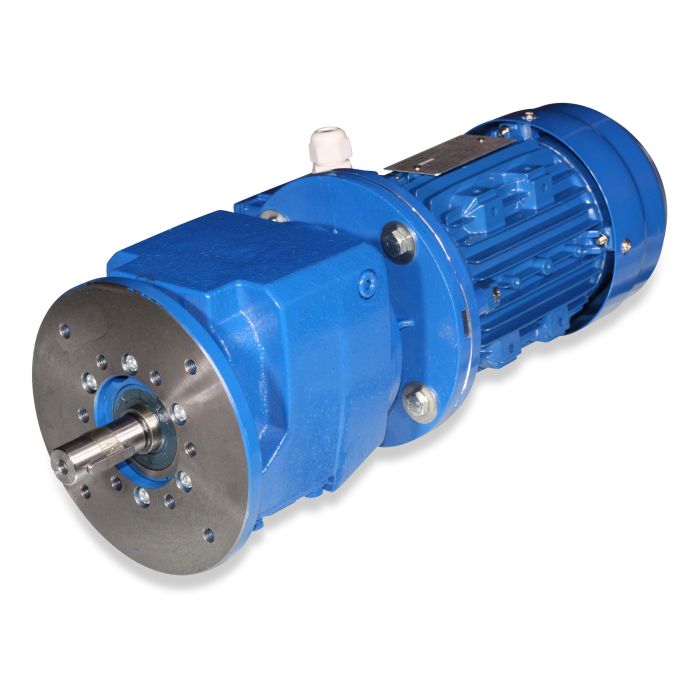

Mot-g 0.37kW 230/400V 3ph 50Hz 27rpm f/elevator EC/EggSmart

SKU

90-00-3750

Sales unit 1 pc

Dimensions
Length	458.00	mm
Width	203.00	mm
Height	158.00	mm
Actual weight	15.461	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B5
Motor size	71
Gear type	Spur gear
Gear design	Flange version
Menge Getriebeöl	0.45	kg
Norm	IEC60034
Weight	13.5	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Type of connection	Star/Delta
Controllable by	Frequenzumformer
Control range	30-65
Permiss. ambient temp. during operation	0 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge mm

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	1,93	A
Current consumption star connection	1,11	A
Power factor	0.74
Efficiency	65
Motor speed	1370	r/min
Gear speed	27	r/min
Nennmoment Getriebe [Volllast]	131	Nm
Service factor	1	Fs

Rated values 60 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	220-277	V
Nominal voltage star connection	380-480	V
Current consumption delta connection	1,93	A
Current consumption star connection	1,11	A
Power factor	0.74
Motor speed	1640	r/min
Gear speed	32,4	r/min
Nennmoment Getriebe [Volllast]	105	Nm
Service factor	1	Fs

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
