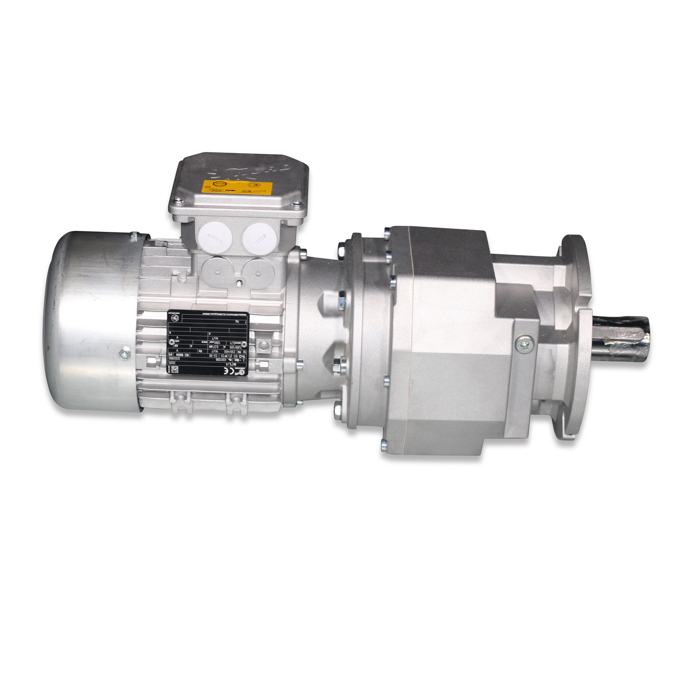

Mot-g 0.37kW 230/400V 3ph 50Hz 22r shaft 35x56 SK372.1F-71L/

SKU

90-00-3752

Sales unit 1 pc

Dimensions
Length	459.00	mm
Width	201.00	mm
Height	178.00	mm
Actual weight	13.276	kg

Basic data
Running mode	S2 Minuten	S1-S10
Betriebsart S2 Minuten	30	min/%
Motor size	71
Gear type	Spur gear
Gear design	Flange version
Norm	IEC60034
Weight	13.3	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-20 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	56	Länge mm

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	1,89	A
Current consumption star connection	1,09	A
Anlaufstrom Ia/In	3.6	Faktor
Power factor	0.71
Motor speed	1380	r/min
Gear speed	22	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
