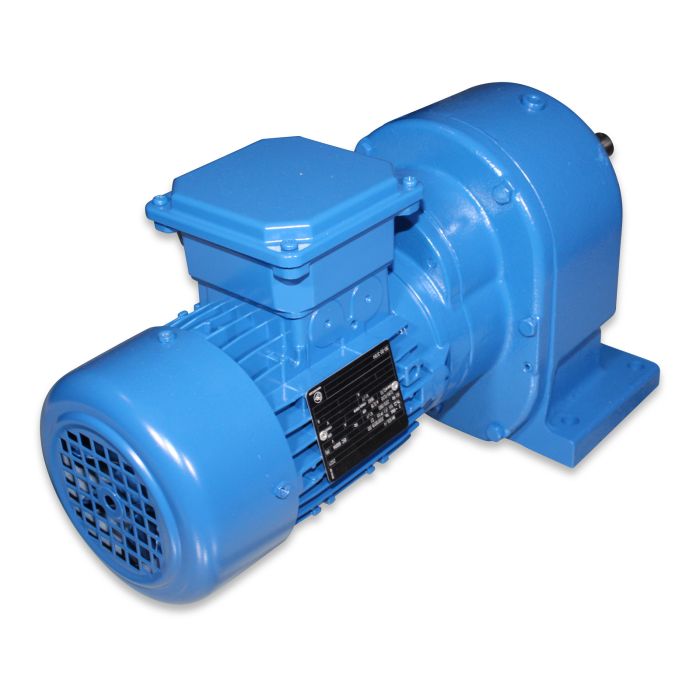

Mot-g 0.18 220/380 60 3 12.2U SK200-63L/4 M6 shaft 25x60

SKU

90-00-3784

Sales unit 1 pc

Dimensions
Length	431.00	mm
Width	187.00	mm
Height	203.00	mm
Actual weight	19.027	kg

Basic data
Running mode	S1	S1-S10
Motor size	63
Gear type	Spur gear
Gear design	Foot version
Norm	IEC60034
Weight	19	kg

Rated values
Phases	3	Anzahl
Frequency	60	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-20 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	60	Länge mm

Rated values 60 Hz
Nominal power	0,18	kW
Nominal voltage delta connection	220	V
Nominal voltage star connection	380	V
Current consumption delta connection	0,95	A
Current consumption star connection	0,55	A
Anlaufstrom Ia/In	3	Faktor
Power factor	0.75
Efficiency	59
Motor speed	1625	r/min
Gear speed	12,2	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
