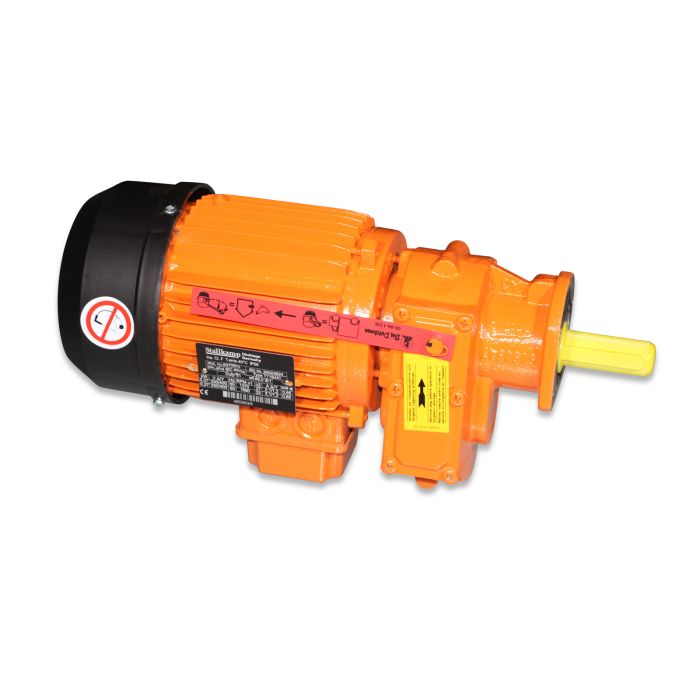

Mot-g 0.37 230/400V 3Ph 50Hz 27.0rpm f/elev ST -2/3 mot Dimensions Length 368.00 mm Width 142.00 mm Height 193.00 mm Actual weight 10.127 kg
Basic data Running mode S1 S1-S10 Design electric motor B14 Motor size 71L Menge Getriebeöl 71L kg Norm IEC60034
Rated values Frequency 50 Hz Pole pair 50 Type of connection Star/Delta Permiss. ambient temp. during operation -15 - 40 °C Kabel Motor 4 adrig
Classification Wirkungsgradklasse IE1 IE1-IE5 IP protection rating IP55 IP Insulation class F
Rated values 50 Hz Nominal power 0,37 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Current consumption delta connection 1,85 A Current consumption star connection 1,07 A Anlaufstrom Ia/In 1,07 Faktor Power factor 1,07 Efficiency 1,07 Motor speed 1375 r/min Nominal torque motor 2,56 Nm Gear speed 27 r/min Nennmoment Getriebe [Volllast] 27 Nm
Rated values 60 Hz Nominal power 0,37 kW Nominal voltage delta connection 230 V Nominal voltage star connection 400 V Current consumption delta connection 1,71 A Current consumption star connection 0,99 A Anlaufstrom Ia/In 0,99 Faktor Power factor 0,99 Efficiency 0,99 Motor speed 1640 r/min Nominal torque motor 2,15 Nm Gear speed 32 r/min Nennmoment Getriebe [Volllast] 32 Nm
Illustrations may show accessories that are not included in the scope of delivery.
