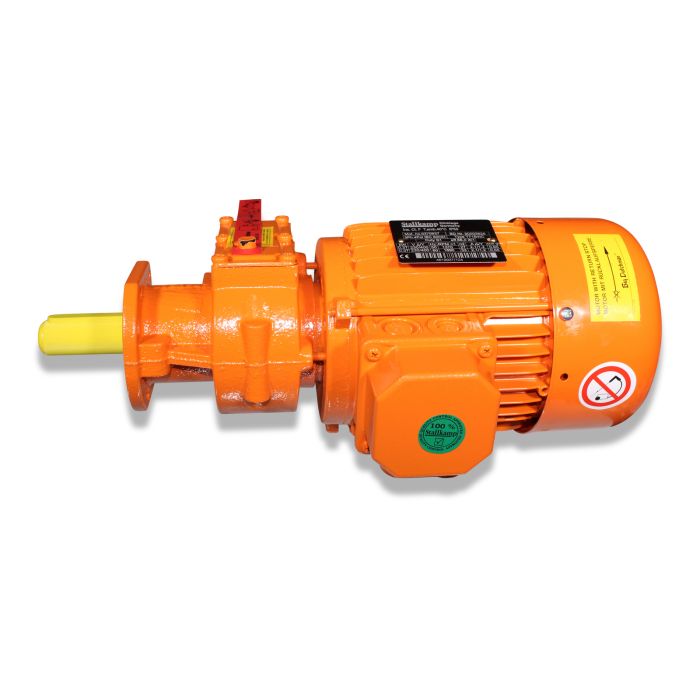

Mot-g 0.37 230/400V 3PH 50Hz 27.0r for elev.-1 mot. ccw

SKU

90-00-3825

Sales unit 1 pc

Dimensions
Length	370.00	mm
Width	220.00	mm
Height	141.00	mm
Actual weight	10.050	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B14
Motor size	71
Gear type	Spur gear
Gear design	Flange version
Gear position	M1	M1-M6
Menge Getriebeöl	0.14	kg
Norm	IEC60034
Weight	10.5	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-15 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	1,85	A
Current consumption star connection	1,07	A
Anlaufstrom Ia/In	3.58	Faktor
Power factor	0.77
Efficiency	64.7
Motor speed	1375	r/min
Gear speed	27	r/min
Nennmoment Getriebe [Volllast]	130	Nm

Rated values 60 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	2,1	A
Current consumption star connection	1,2	A
Gear speed	33	r/min
Nennmoment Getriebe [Volllast]	104	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
