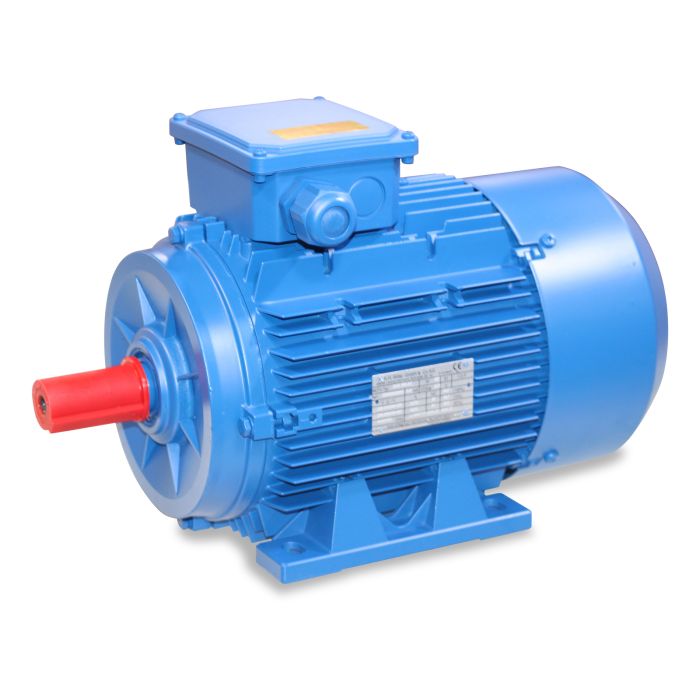

Electric motor 2.20kW 230/400V 50/60Hz 1500/1800r B3

SKU

90-00-3859

Sales unit 1 pc

Dimensions
Length	425.00	mm
Width	226.00	mm
Height	291.00	mm
Actual weight	21.790	kg

Basic data
Running mode	S1	S1-S10
Thermal protection	PTC thermistor
Design electric motor	B3
Motor size	100
Norm	IEC60034
Weight	31	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-10 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	60	Länge mm

Rated values 50 Hz
Nominal power	2,2	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	8,4	A
Current consumption star connection	4,83	A
Anlaufstrom Ia/In	7	Faktor
Power factor	0.78
Efficiency	84.3
Motor speed	1440	r/min
Nominal torque motor	14,6	Nm

Rated values 60 Hz
Nominal power	2,2	kW
Nominal voltage delta connection	220-277	V
Nominal voltage star connection	380-480	V
Motor speed	1730	r/min
