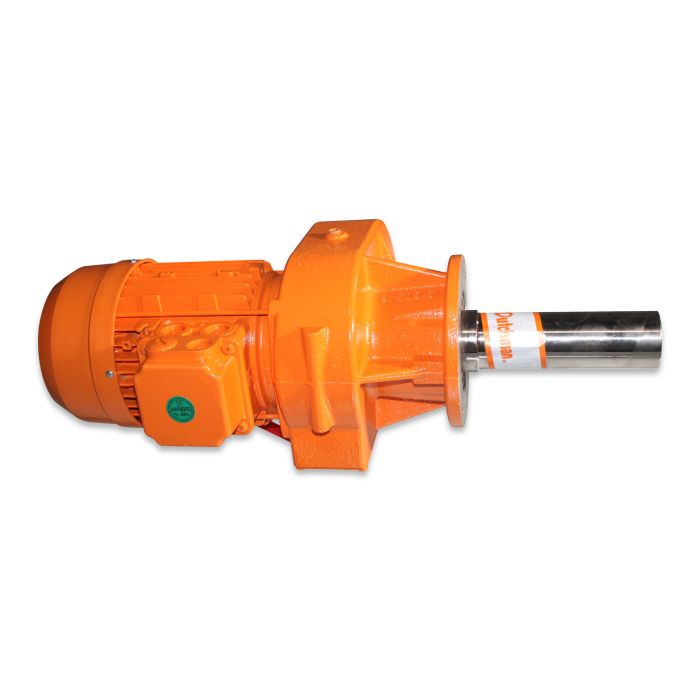

Mot-g 0,75 230/400 50 22,5r Shaft 50x160

SKU

90-00-3908

Sales unit 1 pc

Dimensions
Length	546.00	mm
Width	278.00	mm
Height	193.00	mm
Actual weight	2672.000	kg

Basic data
Design electric motor	B14
Motor size	80S

Rated values
Phases	3
Frequency	50
Pole pair	2

Classification
Efficiency rating (ErP)	IE1
IP protection rating	IP55

Dimensions
Output shaft length	160	mm

Rated values 50 Hz
Nominal power	0,75	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	3,6	A
Current consumption star connection	2,1	A
Nominal torque motor	5,08
Motor speed	1410	U/min
Gear speed	22,5	U/min
