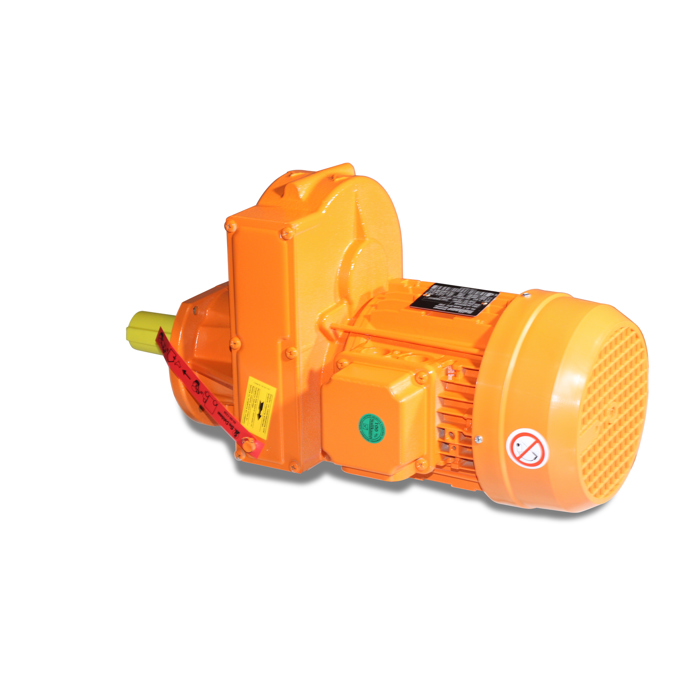

Mot-g 1,10 230/400 50 63r shaft 35x56 G02

SKU

90-00-3912

Sales unit 1 pc

Dimensions
Length	485.00	mm
Width	272.00	mm
Height	218.00	mm
Actual weight	25.500	kg

Basic data
Running mode	S2 + Xmin	S1-S10
Betriebsart S2 Minuten	S2 + Xmin	min
Design electric motor	B14
Motor size	90
Gear type	Spur gear
Gear design	Flange version
Gear position	M1	M1-M6
Menge Getriebeöl	M1	kg
Norm	IEC60034
Weight	IEC60034	kg

Rated values
Frequency	50	Hz
Pole pair	50
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-15 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Rated values 50 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	4,49	A
Current consumption star connection	2,6	A
Power factor	2,6
Efficiency	2,6
Motor speed	1390	r/min
Nominal torque motor	7,62	Nm
Gear speed	63	r/min
Nennmoment Getriebe [Volllast]	63	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
