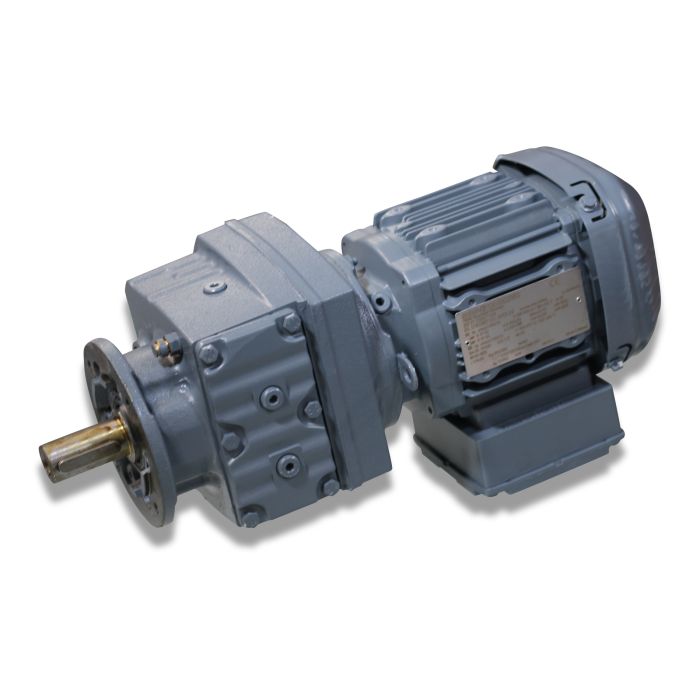

Mot-g 0,37/400/50/3 RF37DRS71S4 10r VW25 2,5/1,2A drive LB Dimensions Length 410.00 mm Width 162.00 mm Height 211.00 mm Actual weight 16037.000 kg
Basic data Running mode S1 S1-S10 Design electric motor B5 Motor size 71 Gear type Spur gear Gear design Flange version Menge Getriebeöl 0.35 kg Norm IEC60034 Weight 16 kg
Rated values Phases 3 Anzahl Frequency 50/60 Hz Pole pair 4 Type of connection Star/Delta Controllable by Frequenzumformer Control range 25-65
Classification Wirkungsgradklasse IE1 IE1-IE5 IP protection rating IP55 IP Insulation class F Certifications CE
Dimensions Output shaft length 50 Länge
Rated values 50 Hz Nominal power 0,37 kW Nominal voltage delta connection 220-242 V Nominal voltage star connection 380-420 V Current consumption delta connection 2,15 A Current consumption star connection 1,23 A Power factor 0.7 Efficiency 66.6 Motor speed 1380 r/min Gear speed 10 r/min Nennmoment Getriebe [Volllast] 345 Nm Service factor 0.6 Fs
Rated values 60 Hz Nominal power 0,37 kW Nominal voltage delta connection 254-277 V Nominal voltage star connection 440-480 V Current consumption delta connection 1,83 A Current consumption star connection 1,06 A Power factor 0.65 Efficiency 68 Motor speed 1700 r/min Nominal torque motor 2,07 Nm Gear speed 13 r/min Nennmoment Getriebe [Volllast] 280 Nm Service factor 0.7 Fs
Illustrations may show accessories that are not included in the scope of delivery.
