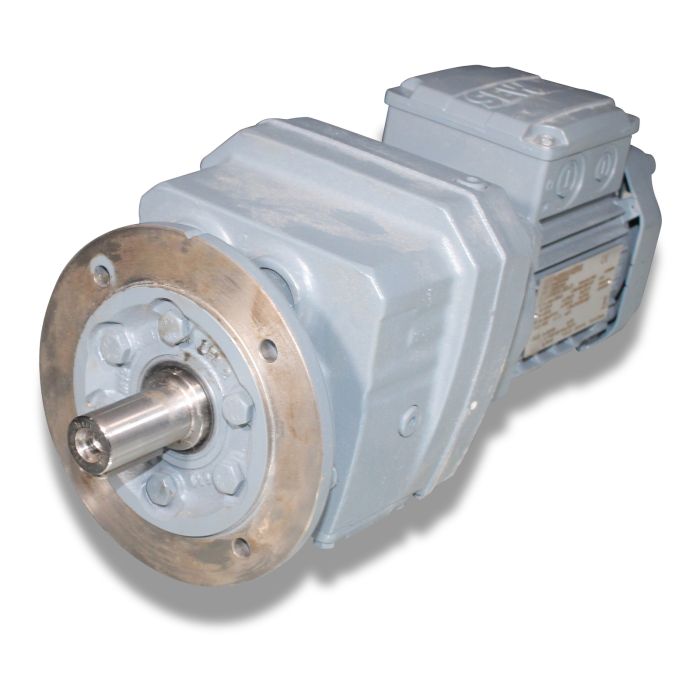

Mot-g 0,25/400/50/3 RF37DR63L4 9,6r VW25 1,27A/0,73A driv.LB

SKU

90-00-3926

Sales unit 1 pc

Dimensions
Length	416.00	mm
Width	171.00	mm
Height	173.00	mm
Actual weight	17.329	kg

Basic data
Running mode	S1	S1-S10
Motor size	71
Gear type	Spur gear
Gear design	Flange version
Menge Getriebeöl	0.75	kg
Norm	IEC60034
Weight	16	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Star/Delta
Controllable by	Frequenzumformer
Control range	30-65
Permiss. ambient temp. during operation	-10 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE3	IE1-IE5
IP protection rating	IP54	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge

Rated values 50 Hz
Nominal power	0,25	kW
Nominal voltage delta connection	220-277	V
Nominal voltage star connection	380-415	V
Current consumption delta connection	1,29	A
Current consumption star connection	0,67	A
Power factor	0.66
Efficiency	73.5
Motor speed	1405	r/min
Gear speed	10	r/min
Nennmoment Getriebe [Volllast]	230	Nm
Service factor	0.85	Fs

Rated values 60 Hz
Nominal power	0,25	kW
Nominal voltage delta connection	254-277	V
Nominal voltage star connection	440-480	V
Current consumption delta connection	1,16	A
Current consumption star connection	0,67	A
Power factor	0.62
Efficiency	74
Motor speed	1720	r/min
Gear speed	13	r/min
Nennmoment Getriebe [Volllast]	187	Nm
Service factor	1.05	Fs

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
