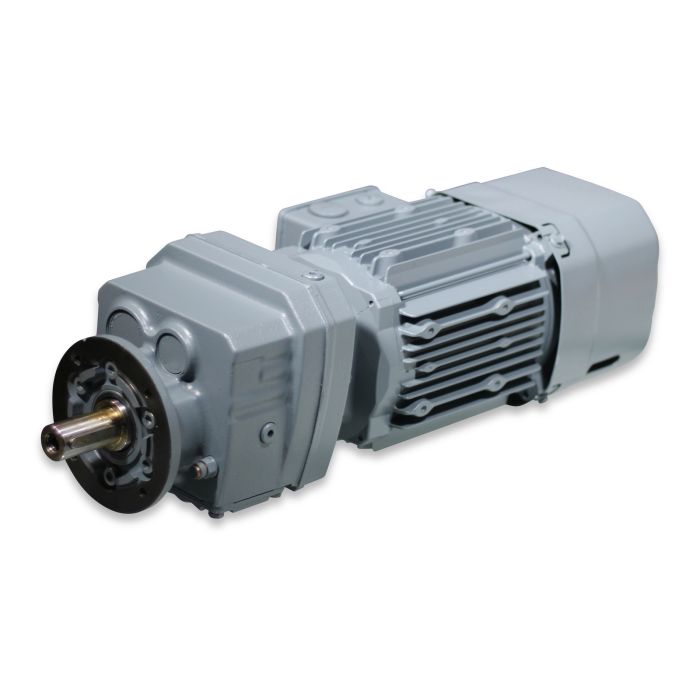

Mot-g 0.75 230/400/50 17r RF37 DRN80M4/RS VW25 RLS

SKU

90-00-3928

Sales unit 1 pc

Dimensions
Length	553.00	mm
Width	215.00	mm
Height	168.00	mm
Actual weight	24.386	kg

Basic data
Running mode	S1	S1-S10
Gear design	Flange version
Weight	24.8	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Controllable by	Frequenzumformer
Permiss. ambient temp. during operation	-10 - 40	°C

Classification
Wirkungsgradklasse	IE2	IE1-IE5
IP protection rating	IP54	IP
Certifications	CE

Dimensions
Output shaft length	50	Länge mm

Rated values 50 Hz
Nominal power	0,75	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	3,05	A
Current consumption star connection	1,75	A
Power factor	0.79
Efficiency	81
Gear speed	17	r/min

Rated values 60 Hz
Nominal power	0,75	kW
Nominal voltage delta connection	254-277	V
Nominal voltage star connection	440-480	V
Current consumption delta connection	2,65	A
Current consumption star connection	1,52	A
Power factor	0.76
Efficiency	82.5
Gear speed	21	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
