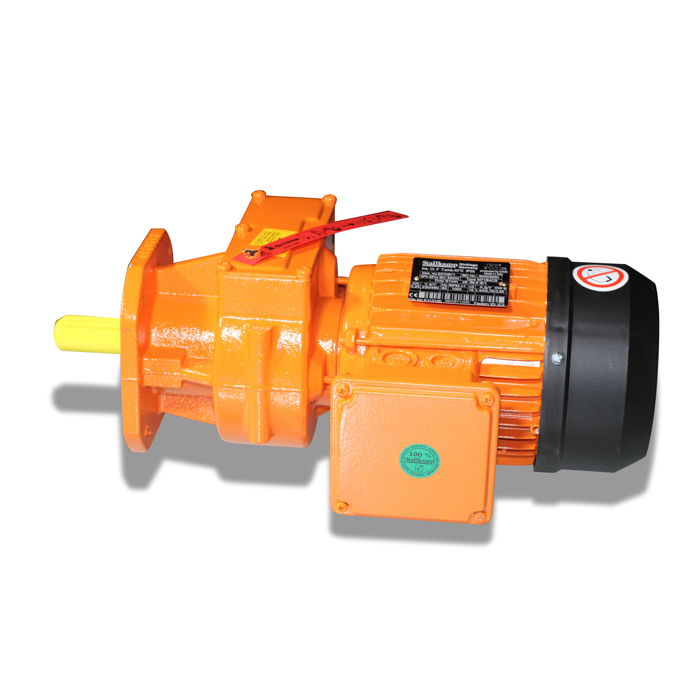

Mot-g 0.25kW 230/460V 60Hz 3Ph 16rpm 6 poles

SKU

90-00-3930

Sales unit 1 pc

Dimensions
Length	394.00	mm
Width	229.00	mm
Height	148.00	mm
Actual weight	15.112	kg

Basic data
Design electric motor	B14

Rated values
Frequency	60	Hz
Pole pair	60
Permiss. ambient temp. during operation	-15 - 40	°C

Classification
IP protection rating	IP55	IP
Insulation class	F

Rated values 60 Hz
Nominal power	0,25	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	460	V
Current consumption delta connection	1,44	A
Current consumption star connection	0,76	A
Power factor	0,76
Motor speed	1100	r/min
Nominal torque motor	2,60	Nm
Gear speed	16	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
