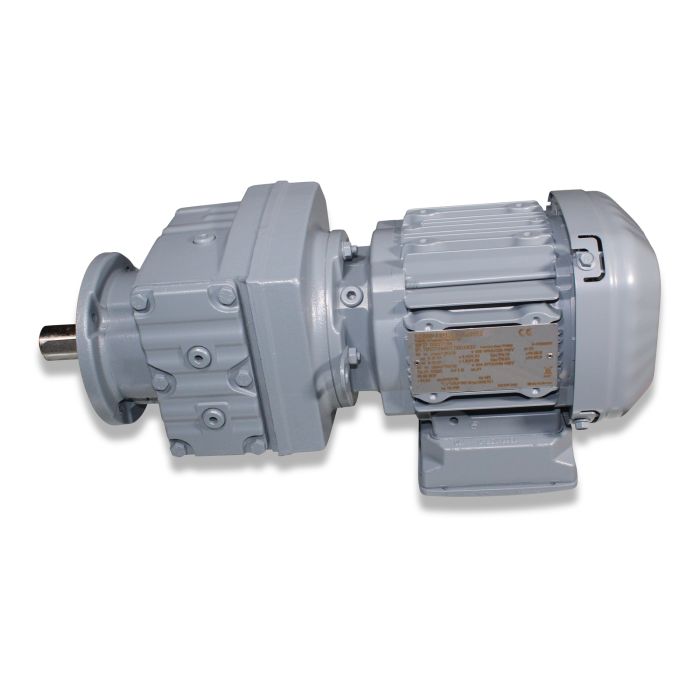

Mot-g 0.37 230-400 50-60 3 16r solidshaft25 2.2/1.2A driveLB Dimensions Length 410.00 mm Width 152.00 mm Height 208.00 mm Actual weight 15.842 kg
Basic data Running mode S1 S1-S10 Motor size 71 Gear type Spur gear Gear design Flange version Gear position M5 M1-M6 Menge Getriebeöl 0.75 kg Norm IEC60034 Weight 17 kg
Rated values Phases 3 Anzahl Frequency 50/60 Hz Type of connection Star/Delta Controllable by Frequenzumformer Control range 30-65 Permiss. ambient temp. during operation -10 - 40 °C Kabel Motor 4 adrig
Classification Wirkungsgradklasse IE3 IE1-IE5 IP protection rating IP55 IP Certifications CE
Dimensions Output shaft length 50 Länge
Rated values 50 Hz Nominal power 0,37 kW Nominal voltage delta connection 220-240 V Nominal voltage star connection 380-415 V Current consumption delta connection 1,83 A Current consumption star connection 1,05 A Power factor 0.66 Efficiency 77.3 Motor speed 1415 r/min Gear speed 16 r/min Nennmoment Getriebe [Volllast] 225 Nm Service factor 0.9 Fs
Rated values 60 Hz Nominal power 0,37 kW Nominal voltage delta connection 254-277 V Nominal voltage star connection 440-480 V Current consumption delta connection 1,65 A Current consumption star connection 0,95 A Power factor 0.62 Efficiency 78.5 Motor speed 1730 r/min Gear speed 19 r/min Nennmoment Getriebe [Volllast] 185 Nm Service factor 1.1 Fs
Illustrations may show accessories that are not included in the scope of delivery.
