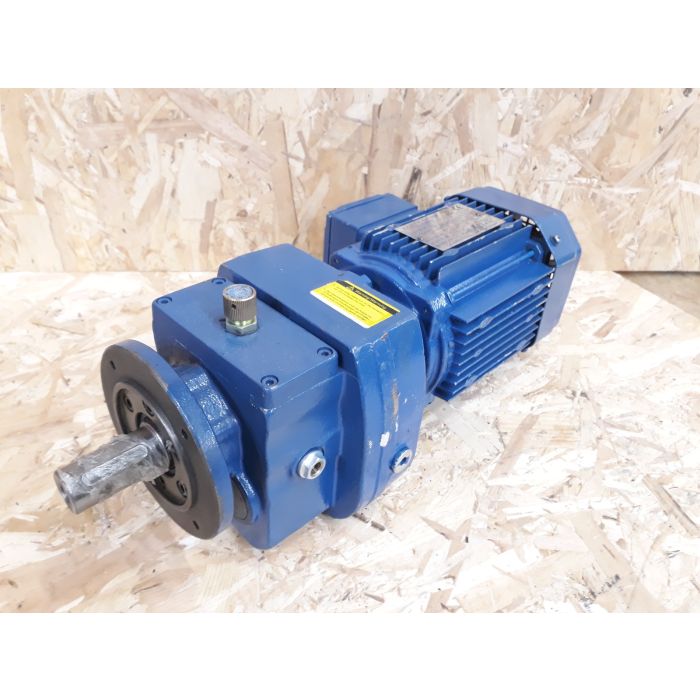

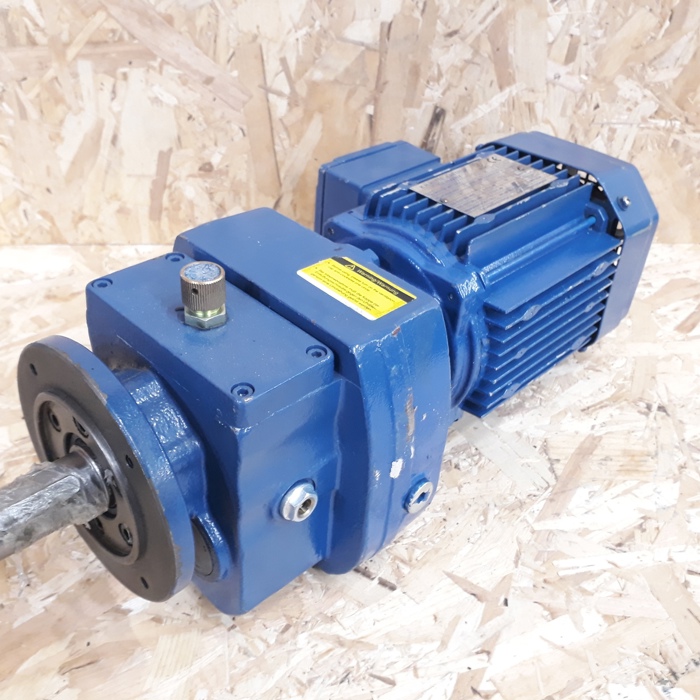

Mot-g 0.55 230/400V 3ph 50Hz 13rpm shaft 25x50 f/EggTrax

SKU

90-00-3939

Sales unit 1 pc

Basic data
Gear type	Spur gear
Running mode	S1
Design electric motor	RF37

Rated values
Phases	3
Frequency	50

Classification
Efficiency rating (ErP)	IE1
Certifications	CE
IP protection rating	IP54

Dimensions
Output shaft length	50	mm

Rated values 50 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	2,8	A
Current consumption star connection	1,62	A
Nominal torque motor	3,8
Motor speed	1380	U/min
Gear speed	13	U/min
Power factor	0.72
Efficiency	70.6
Service factor	0.5

Rated values 60 Hz
Nominal power	0,55	kW
Nominal voltage delta connection	254-277	V
Nominal voltage star connection	440-480	V
Current consumption delta connection	2,25	A
Current consumption star connection	1,31	A
Nominal torque motor	3,01
Motor speed	1700	U/min
Gear speed	16	U/min
Power factor	71
Efficiency	74
Service factor	0.6

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
