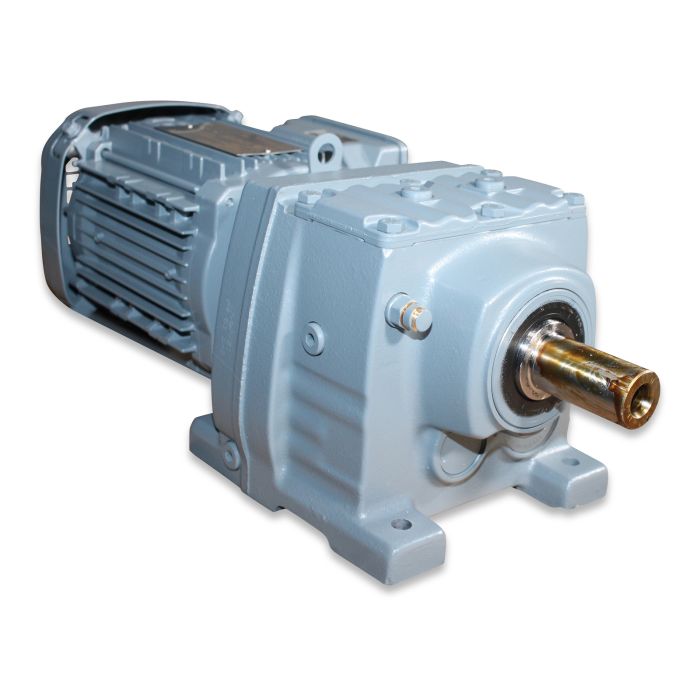

Mot-g 0,37 230/400 50/60 Shaft 25 drive l-b BD-Colony2+/FHC

SKU

90-00-4020

Sales unit 1 pc

Dimensions
Length	614.00	mm
Width	355.00	mm
Height	338.00	mm
Actual weight	18594.000	kg

Basic data
Design electric motor	R37

Rated values
Phases	3
Frequency	50

Classification
Certifications	CE
IP protection rating	IP54

Dimensions
Output shaft length	50	mm

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	2,15	A
Current consumption star connection	1,24	A
Nominal torque motor	2,56
Motor speed	1380	U/min
Gear speed	15	U/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
