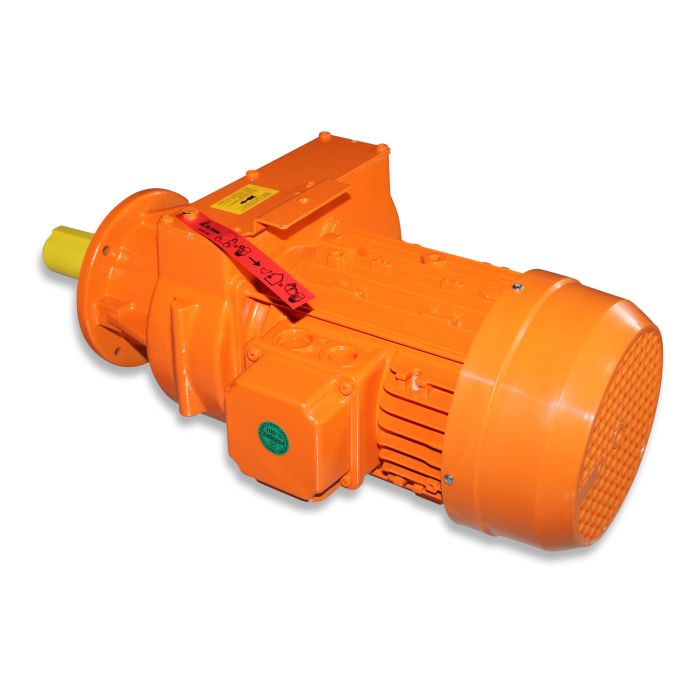

Mot-g 1.50 230/400 50 3 24r shaft 35x56 drive MB

SKU

90-00-4025

Sales unit 1 pc

Dimensions
Length	619.00	mm
Width	309.00	mm
Height	286.00	mm
Actual weight	30268.000	kg

Basic data
Design electric motor	B14
Motor size	90L

Rated values
Phases	3
Frequency	50
Pole pair	2

Classification
Efficiency rating (ErP)	IE1
IP protection rating	IP55

Dimensions
Output shaft length	56	mm

Rated values 50 Hz
Nominal power	1,5	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	6,5	A
Current consumption star connection	3,7	A
Nominal torque motor	10,16
Motor speed	1410	U/min
Gear speed	24	U/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
