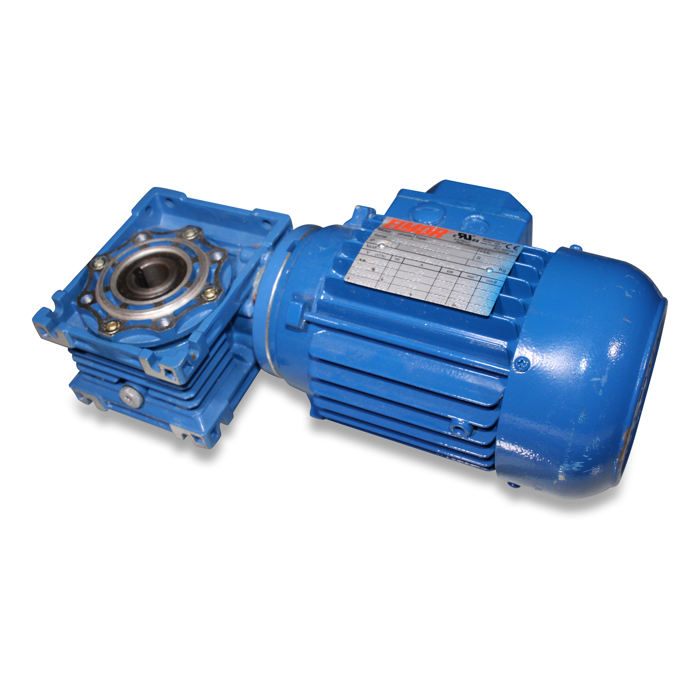

Mot-g 0.18 400/480V 50/60 holl shaft 20 UL/CSA 16rpm elev EC

SKU

90-00-4027

Sales unit 1 pc

Dimensions
Length	327.00	mm
Width	176.00	mm
Height	121.00	mm
Actual weight	6.324	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B14
Motor size	63
Gear type	Worm gear
Gear design	Flange version
Menge Getriebeöl	0.08	kg
Norm	IEC60034
Weight	6	kg

Rated values
Phases	3	Anzahl
Frequency	50/60	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-10 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE, UL, CSA

Rated values 50 Hz
Nominal power	0,18	kW
Nominal voltage delta connection	220-242	V
Nominal voltage star connection	380-420	V
Current consumption delta connection	1,42	A
Current consumption star connection	0,82	A
Anlaufstrom Ia/In	2.8	Faktor
Power factor	0.65
Efficiency	55
Gear speed	16,3	r/min
Nennmoment Getriebe [Volllast]	30	Nm

Rated values 60 Hz
Nominal power	0,18	kW
Nominal voltage delta connection	254-277	V
Nominal voltage star connection	440-480	V
Current consumption delta connection	1,29	A
Current consumption star connection	0,74	A
Anlaufstrom Ia/In	2.8	Faktor
Power factor	0.65
Efficiency	55
Gear speed	19,5	r/min
Nennmoment Getriebe [Volllast]	24	Nm
