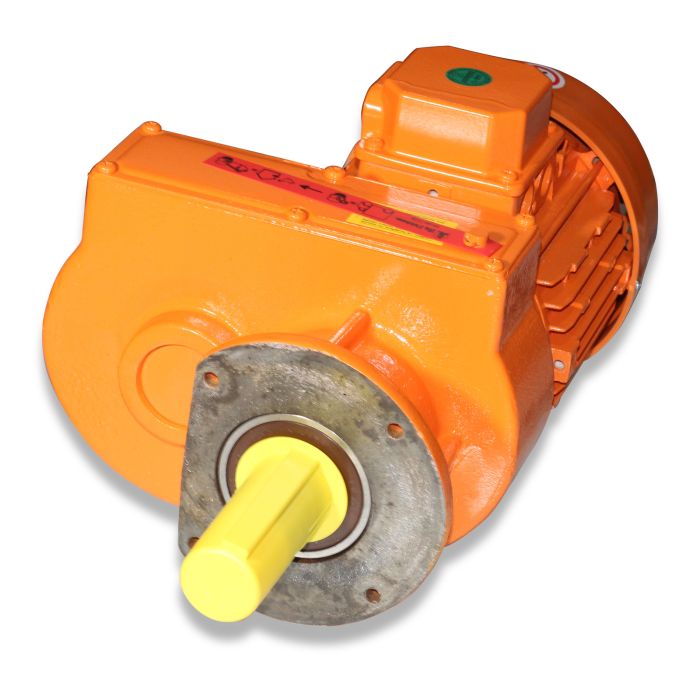

Mot-g 1.10 230/400 50 3 22.5r shaft 35x56 MPF

SKU

90-00-4029

Sales unit 1 pc

Basic data
Running mode	S2 Minuten	S1-S10
Betriebsart S2 Minuten	45	min/%
Design electric motor	B14
Motor size	90
Gear type	Spur gear
Gear design	Flange version
Menge Getriebeöl	0.5	kg
Norm	IEC60034
Weight	27.3	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-15 - 40	°C
Kabel Motor	4 adrig

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	56	Länge mm

Rated values 50 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	4,4	A
Current consumption star connection	2,8	A
Anlaufstrom Ia/In	4.3	Faktor
Power factor	0.8
Efficiency	72.3
Motor speed	1383	r/min
Nominal torque motor	7,7	Nm
Gear speed	62	r/min
Nennmoment Getriebe [Volllast]	174	Nm
