Mot-g 0.37kW 242-277/420-480V 3ph 60Hz 28r elev EC

SKU

90-00-4037

Sales unit 1 pc

Basic data
Running mode	S1	S1-S10
Gear design	Flange version
Weight	13.5	kg

Rated values
Phases	3	Anzahl
Frequency	60	Hz
Controllable by	Frequenzumformer
Permiss. ambient temp. during operation	-10 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge mm

Rated values 60 Hz
Nominal power	0,37	kW
Nominal voltage delta connection	220-277	V
Nominal voltage star connection	380-480	V
Current consumption delta connection	1,11	A
Current consumption star connection	1,93	A
Power factor	0.74
Efficiency	65
Gear speed	28	r/min

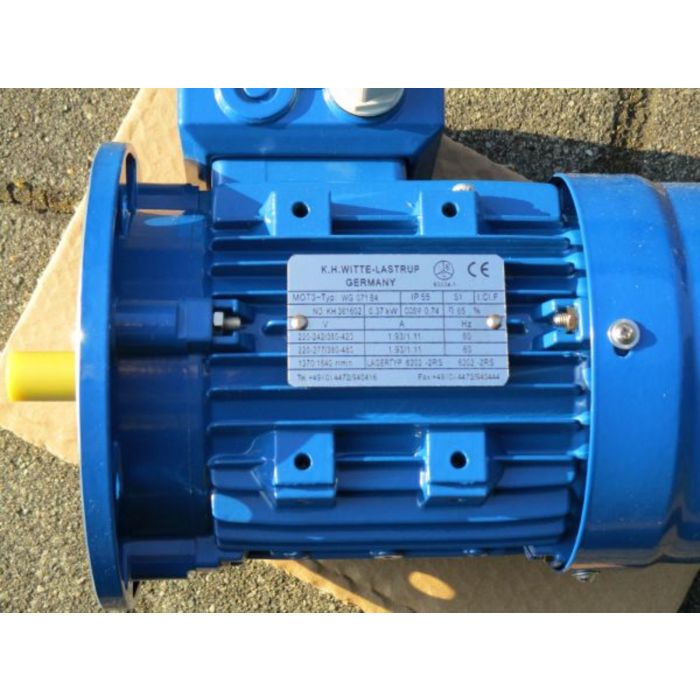

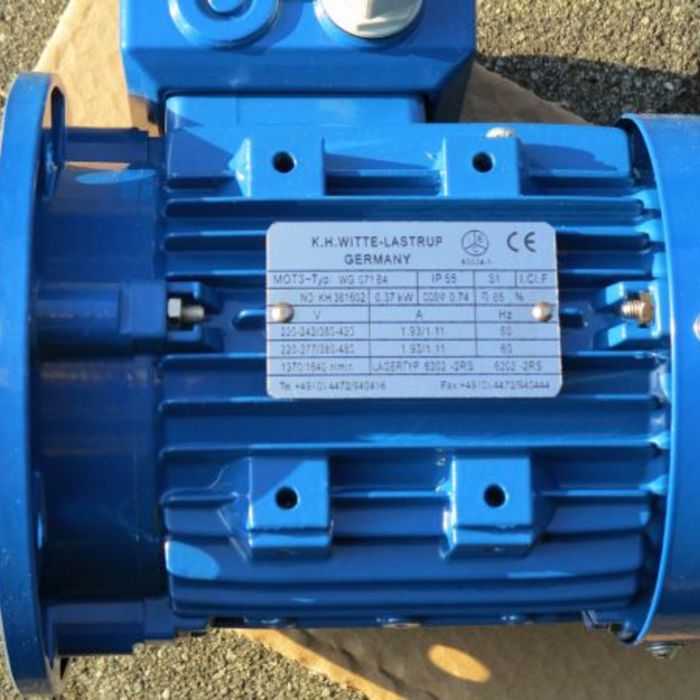

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
