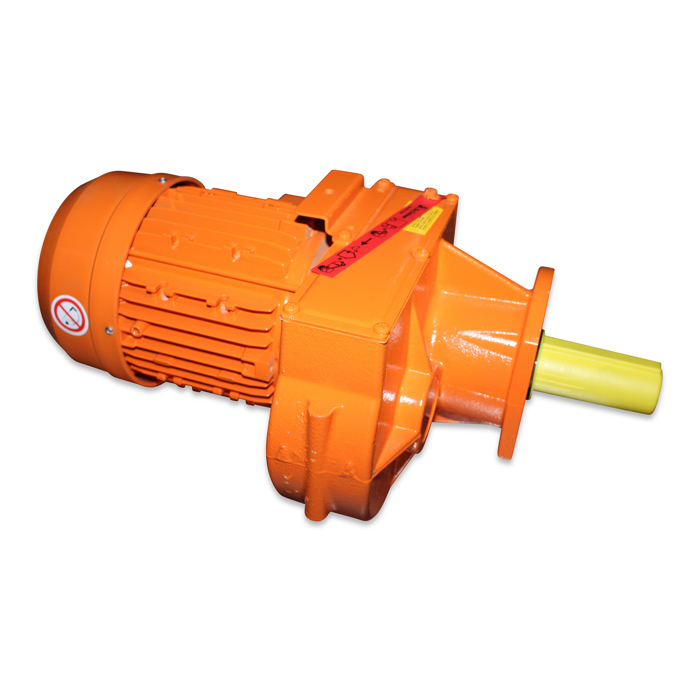

Mot-g 1.10 230/400 50 3 22.5r shaft 35x56 drive MB

SKU

90-00-4038

Sales unit 1 pc

Dimensions
Length	518.00	mm
Width	240.00	mm
Height	218.00	mm
Actual weight	26825.000	kg

Basic data
Design electric motor	B14
Motor size	90S

Rated values
Phases	3
Frequency	50
Pole pair	2

Classification
Efficiency rating (ErP)	IE1
IP protection rating	IP55

Dimensions
Output shaft length	56	mm

Rated values 50 Hz
Nominal power	1,1	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	4,77	A
Current consumption star connection	2,76	A
Nominal torque motor	7,56
Motor speed	1390	U/min
Gear speed	22,5	U/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
