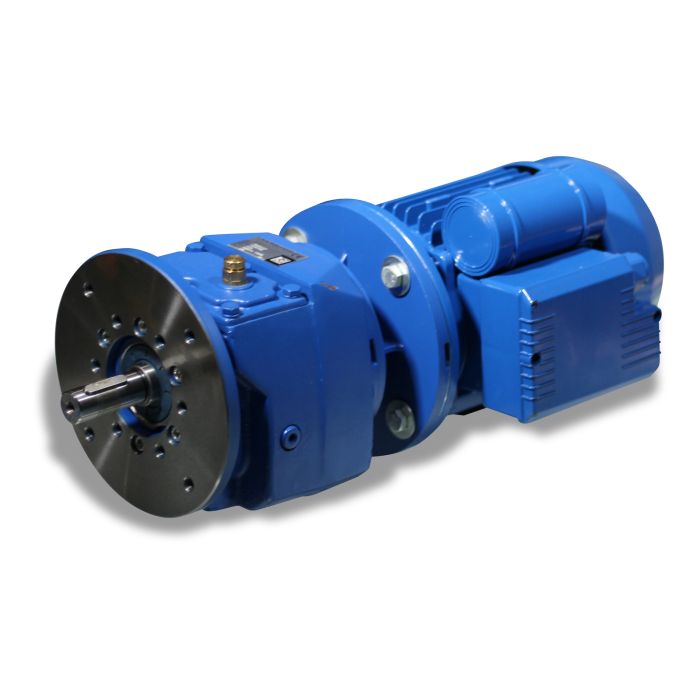

Mot-g 0.37kW 230V 1ph 50Hz 27r w/start&op. capacitor elev EC

SKU

90-00-4039

Sales unit 1 pc

Dimensions
Length	441.00	mm
Width	201.00	mm
Height	171.00	mm
Actual weight	15.089	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B5
Motor size	71
Gear type	Spur gear
Gear design	Flange version
Gear position	M1	M1-M6
Menge Getriebeöl	0.35	kg
Norm	IEC60034
Weight	13.5	kg

Rated values
Phases	1	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Single Phase
Controllable by	nicht regelbar

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	50	Länge

Rated values 50 Hz
Nominal power	0,37	kW
Nominal voltage single-phase	230	V
Current consumption single-phase	3,0	A
Anlaufstrom Ia/In	3.2	Faktor
Power factor	9
Efficiency	59
Motor speed	1380	r/min
Gear speed	27	r/min
Nennmoment Getriebe [Volllast]	131	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
