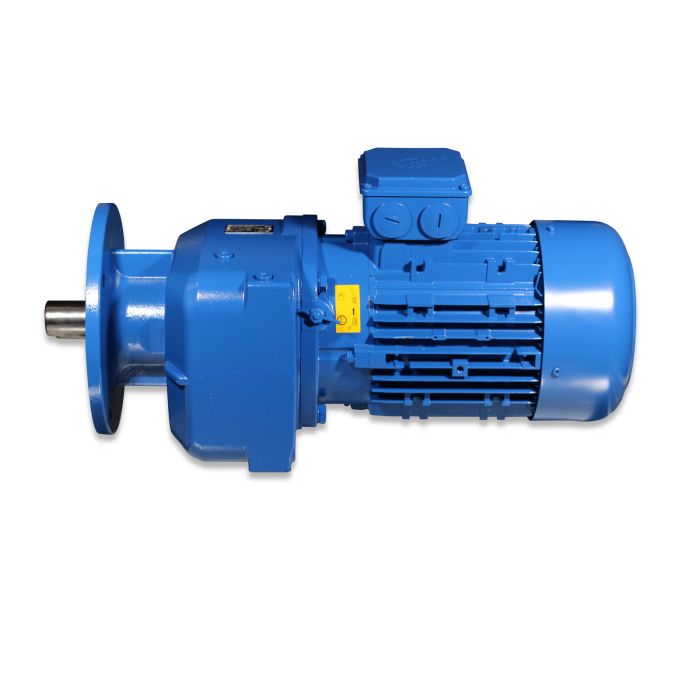

Mot-g 4.00 400/690 50Hz 63r V1/A1 250 shaft 40x58 from mater

SKU

90-00-4040

Sales unit 1 pc

Dimensions
Length	708.00	mm
Width	340.00	mm
Height	263.00	mm
Actual weight	63.500	kg

Basic data
Running mode	S2 Minuten	S1-S10
Gear design	Flange version
Weight	62	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	58	Länge mm

Rated values 50 Hz
Nominal power	4,4	kW
Nominal voltage delta connection	400	V
Nominal voltage star connection	690	V
Current consumption delta connection	8,8	A
Current consumption star connection	5,08	A
Gear speed	63	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
