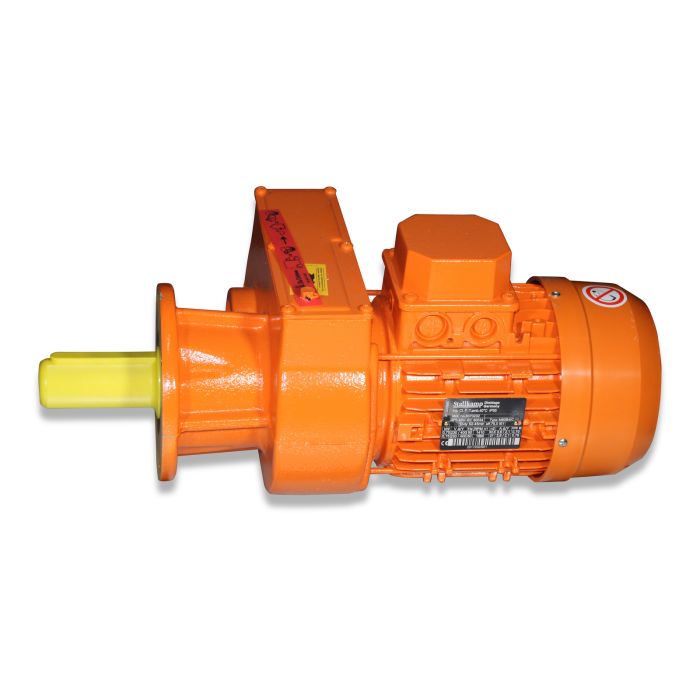

Mot-g0.75 230/400 50 22.5r shaft 35x56 for MPF 10-93-5010

SKU

90-00-4043

Sales unit 1 pc

Basic data
Running mode	S2 Minuten	S1-S10
Betriebsart S2 Minuten	45	min/%
Design electric motor	B14
Motor size	80
Gear type	Spur gear
Gear design	Flange version
Gear position	M1	M1-M6
Menge Getriebeöl	0.36	kg
Norm	IEC60034
Weight	23.7	kg

Rated values
Phases	3	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Star/Delta
Permiss. ambient temp. during operation	-15 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	56	Länge mm

Rated values 50 Hz
Nominal power	0,75	kW
Nominal voltage delta connection	230	V
Nominal voltage star connection	400	V
Current consumption delta connection	3,37	A
Current consumption star connection	1,95	A
Anlaufstrom Ia/In	2.89	Faktor
Power factor	0.77
Efficiency	71.5
Motor speed	1380	r/min
Gear speed	22	r/min
Nennmoment Getriebe [Volllast]	320	Nm

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
