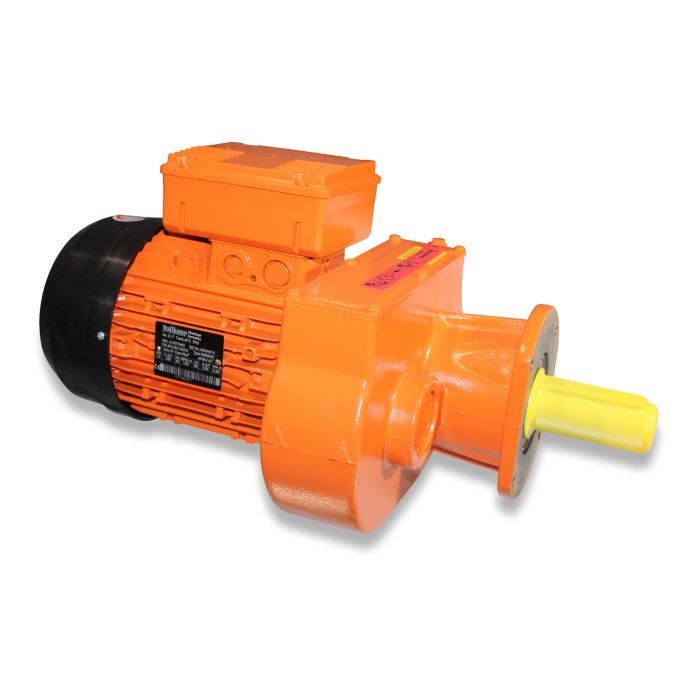

Mot-g 1.50kW 240V 1Ph 50Hz 8.54A 63.0r shaft 35x56

SKU

90-00-4074

Sales unit 1 pc

Dimensions
Length	514.00	mm
Width	307.00	mm
Height	288.00	mm
Actual weight	28.400	kg

Basic data
Running mode	S1	S1-S10
Design electric motor	B14
Motor size	90
Gear type	Spur gear
Gear design	Flange version
Menge Getriebeöl	0.5	kg
Norm	IEC60034
Weight	28.4	kg

Rated values
Phases	1	Anzahl
Frequency	50	Hz
Pole pair	4
Type of connection	Single Phase
Permiss. ambient temp. during operation	-15 - 40	°C

Classification
Wirkungsgradklasse	IE1	IE1-IE5
IP protection rating	IP55	IP
Insulation class	F
Certifications	CE

Dimensions
Output shaft length	56	Länge mm

Rated values 50 Hz
Nominal power	1,5	kW
Nominal voltage single-phase	240	V
Current consumption single-phase	8,54	A
Anlaufstrom Ia/In	2.89	Faktor
Power factor	0.93
Efficiency	69
Motor speed	1350	r/min
Nominal torque motor	9,23	Nm
Gear speed	63	r/min

Illustrations may show accessories that are not included in the scope of delivery.
Due to constant further development of our products, illustrations and technical data may deviate slightly. Errors and omissions excepted.
